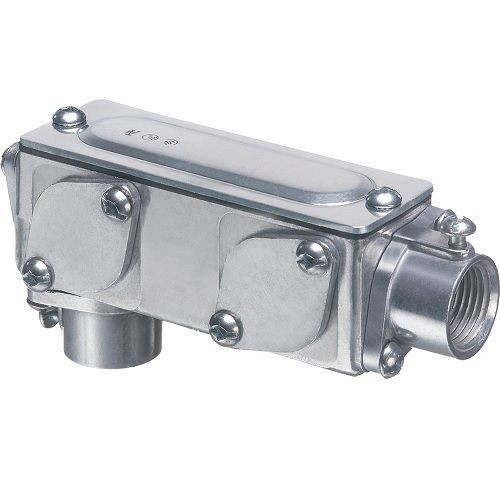

Arlington AnyBODY™ 934 5-in-1 Conduit Body With Cover, Gasket, LB Body, 1-1/2 in Hub, 32.3 cu-in Capacity, Copper Free Die Cast Aluminum

Selected FilesART934
FilesART934

Documents

Short Description

Arlington’s aluminum or plastic AnyBODY™ ships as an LB, but converts to a T, LL, LR or C by switching the blank plates and threaded flanges to create the style you need. It’s easy - and convenient. Plus, it saves you the hassle, space, and cost of stocking five different conduit bodies. They’re competitively priced with LBs with NO EXTRA COST for the normally more expensive T.

Features

  • Meets NEC 2011 Section 314.16 Paragraph (C) (2) for conduit bodies with splices, taps, or devices
  • Convenient and easy to use
  • Saves the time, space, and cost of stocking five different conduit bodies (LB, T, LL, LR, C)
  • 1/2 to 2 in sizes are combination EMT/rigid they’re threaded for rigid, but also have a setscrew for use with EMT
  • Volume and wire fill marked inside bodies
  • Recessed O-rings under covers and flanges
  • Copper Free Die Cast Aluminum

Specification

Hub Size
1-1/2 in
Material
Aluminum
Number of Hubs
2
Type
Type LB Combination
Application
For Rigid/IMC and EMT Cable
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
Dimensions
8.55 in L x 4.02 in W x 1.613 in H
Capacity
32.3 cu-in
Color
Silver
Connection Type
Screw
Includes
Threaded Flanges
