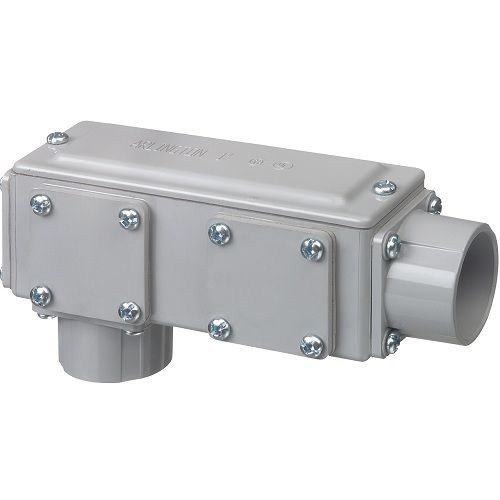

Arlington AnyBODY™ 935NM 5-in-1 Conduit Body With Cover, Gasket, LB Body, 2 in Hub, 65.3 cu-in Capacity, Plastic

Selected Arlington AnyBODY™ 935NM 5-in-1 Conduit Body With Cover, Gasket, LB Body, 2 in Hub, 65.3 cu-in Capacity, Plastic
Arlington AnyBODY™ 935NM 5-in-1 Conduit Body With Cover, Gasket, LB Body, 2 in Hub, 65.3 cu-in Capacity, Plastic

Documents

Short Description

Arlington's AnyBODY™ ships as an LB, but converts to a T, LL, LR, or C by switching the blank plates and threaded flanges to create the style you need.

Features

  • Non-metallic
  • Weathertight
  • Saves the time, space, and cost of stocking five different conduit bodies
  • Volume and wire fill marked inside bodies
  • Using standard PVC cement, AnyBODY glues onto pipe for easy installation
  • All gaskets are secured and maintain a raintight seal
  • Convenient and easy to use

Specification

Hub Size
2 in
Material
Plastic
Type
Universal
Body Style
LB/T/LL/LR/C Shape
Capacity
65.3 cu-in
Color
Gray
Connection Type
Threaded
Form
7
Includes
Three Flanges with Glue-in Conduit Joints
Standard & Approvals
UL E170558, CSA LR49636, RoHS Compliant
Dimensions
10.84 in L x 4.71 in W x 3.63 in H
