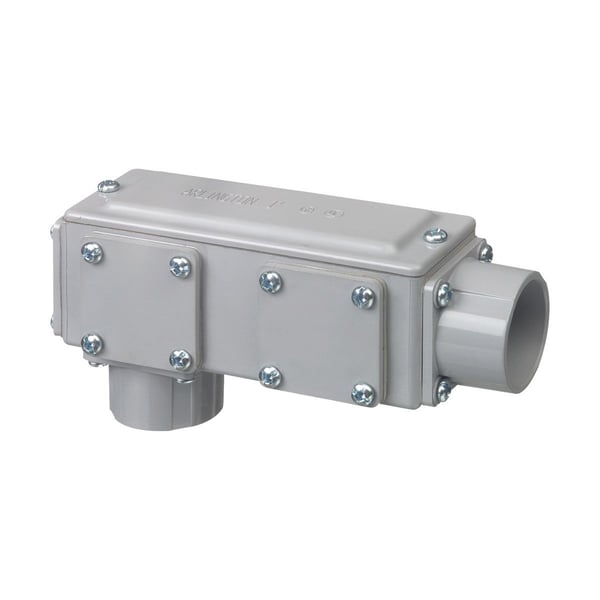

Arlington AnyBODY™ 938NM 5-in-1 Conduit Body With Cover, Gasket, LB Body, 3-1/2 in Hub, 369 cu-in Capacity, Plastic
Arlington AnyBODY™ 938NM 5-in-1 Conduit Body With Cover, Gasket, LB Body, 3-1/2 in Hub, 369 cu-in Capacity, Plastic
SKU: ART938NM
Manufacturer Part Number: 938NM
UPC: 018997125088
Documents
Short Description
Arlington's AnyBODY™ ships as an LB, but converts to a T, LL, LR, or C by switching the blank plates and threaded flanges to create the style you need.
Features
- Saves the time, space, and cost of stocking five different conduit bodies
- Volume and wire fill marked inside bodies
- Using standard PVC cement, AnyBody™ glues onto pipe for easy installation
- All gaskets are secured and maintain a raintight seal
- Convenient and easy to use
Specification
| Hub Size | 3-1/2 in |
|---|---|
| Material | Plastic |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Connection Type | Threaded |
| Form | 7 |
| Type | Non-Metallic Universal |
| Standard & Approvals | CSA Certified, Meets Section 314.16 (c) (2) of the 2014 NEC Requirements, RoHS Compliant, UL Listed |
| Body Style | LB/T/LL/LR/C Shape |
| Includes | (3) Flanges with Glue-in Conduit Joints |
| Dimensions | 17.17 in L x 7.61 in W x 6.09 in H |
| Catalog ID | ART938NM |
| Capacity | 369 cu-in |
| Video | http://www.youtube.com/v/BSuhWmG2Hzk |
