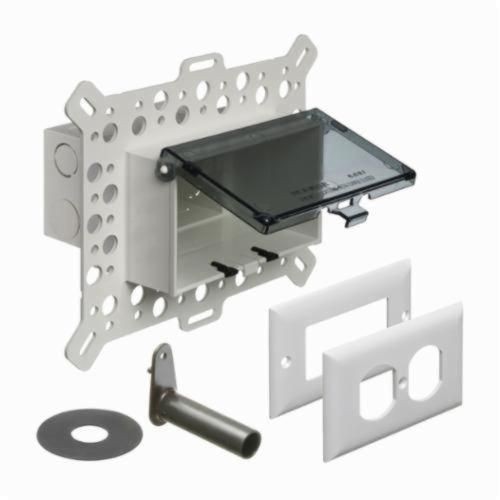

Arlington InBox™ DBHM1C DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gang, 1 Outlet, 7.012 in L x 9.058 in W x 5.16 in D
Arlington InBox™ DBHM1C DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gang, 1 Outlet, 7.012 in L x 9.058 in W x 5.16 in D
SKU: ARTDBHM1C
Manufacturer Part Number: DBHM1C
UPC: 018997776082
Short Description
Features
- One-piece assembly replaces the installation of an electrical box and bubble cover assembly
- Installs in the wall, so less of it shows outside
- Holes in flange allow stucco to bond firmly
- Install option, cover is removable for easier device installation
- For the protection of exterior outlets which require the use of an extra duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles
- UV rated plastic
- Without knockout
- Recessed/horizontal mounting
Specification
| Material | Plastic |
|---|---|
| Mounting Type | Surface |
| Number of Gangs | 1 |
| Number of Outlets | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=Hs4gp1-rwvE |
| Capacity | 22 cu-in |
| Catalog ID | ARTDBHM1C |
| Color | Clear |
| Dimensions | 7.012 in L x 9.058 in W x 5.16 in D |
| Enclosure Type | NEMA 3R |
| Finish | Textured/Paintable |
| Type | Low Profile |
| Application | For new stucco construction, textured surface and rigid siding |
| Standard & Approvals | UL E170558, CSA LR49636, 2015 CEC (Rule 26-702), NEC 406.9 (b), NEMA 3R, RoHS Compliant |
| Includes | Bug Plug and Weatherproof Horizontal Cover |
