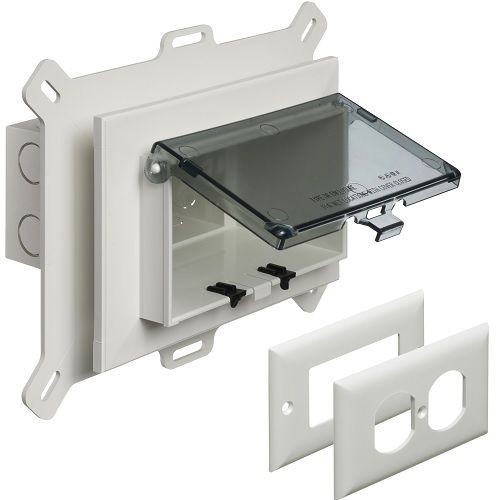

Arlington InBox™ DBHS1C DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gangs, 1 Outlets, 7.012 in L x 9.058 in W x 5.16 in H

Documents

Short Description

One-piece, 22.0 cu in recessed electrical box with weatherproof-in-use extra duty cover for stucco over masonry or wood construction. also for cementitious/fiber rigid lap siding. Nonmetallic cover and base. Accepts most single gang wiring devices and uses standard indoor wall plates or a GFCI cover plate. box and white cover are textured/ paintable. UV rated plastic for long outdoor life.

Features

  • In BOX’s one-piece assembly replaces the installation of an electrical box, siding block, and bubble cover assembly
  • Installs in the wall, so less of it shows outside
  • Outer flange covers cut ends of siding
  • Install option, cover is removable for easier device installation
  • For the protection of exterior outlets which require the use of an extra duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles
  • No gaskets required
  • All types siding type
  • UV rated plastic
  • Without knockout
  • Recessed/horizontal mounting

Specification

Material
Plastic
Mounting Type
Surface
Number of Gangs
1
Number of Outlets
1
Type
Low Profile
Standard & Approvals
UL E170558, CSA LR49636, 2015 CEC (Rule 26-702), NEC 406.9 (b), NEMA 3R, RoHS Compliant
Capacity
22 cu-in
Color
Clear
Enclosure Type
NEMA 3R
Application
For new vinyl siding construction
Includes
Bug Plug and Weatherproof Horizontal Cover
Finish
Textured/Paintable
Dimensions
7.012 in L x 9.058 in W x 5.16 in H
