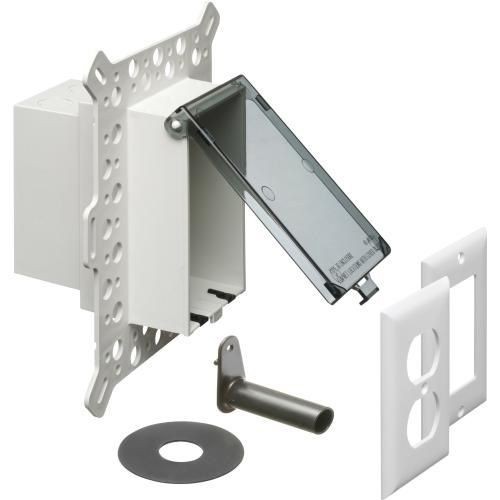

Arlington InBox™ DBVM1C Low Profile Vertical Recessed Weatherproof Box, Plastic, 22 cu-in Capacity, 1 Gangs, 1 Outlets

Selected Arlington InBox™ DBVM1C Low Profile Vertical Recessed Weatherproof Box, Plastic, 22 cu-in Capacity, 1 Gangs, 1 Outlets
Arlington InBox™ DBVM1C Low Profile Vertical Recessed Weatherproof Box, Plastic, 22 cu-in Capacity, 1 Gangs, 1 Outlets

Documents

Short Description

One-piece, 22 cu-in recessed electrical box with weatherproof-in-use extra duty cover for stucco over masonry or wood construction. Also for cementitious/fiber rigid lap siding. Non-metallic cover and base. Accepts most single gang wiring devices and uses standard indoor wall plates or a GFCI cover plate. Box and white cover are textured/paintable. UV rated plastic for long outdoor life.

Features

  • One-piece assembly replaces the installation of an electrical box and bubble cover assembly
  • Installs in the wall, so less of it shows outside
  • Holes in flange allow stucco to bond firmly
  • Cover is removable for easier device installation

Specification

Material
Plastic
Number of Gangs
1
Minimum Order Qty
1
Order Interval
1
Capacity
22
Catalog ID
ARTDBVM1C
Color
White
Dimensions
7.01 in W x 5.16 in D x 9.06 in H
Finish
Textured/Paintable
Type
Low Profile Vertical
Application
For new brick construction, textured and rigid siding
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, ECCN:EAR99, UL File No. E170558, CSA File No. LR49636
Includes
Installed Bug Plugs, (1) Standard Duplex, (1) Standard GFCI Face Plate, (1) Non-Metallic Cable Connector, Block Bushing with Washer and In-Place Disposable Mud Cover
