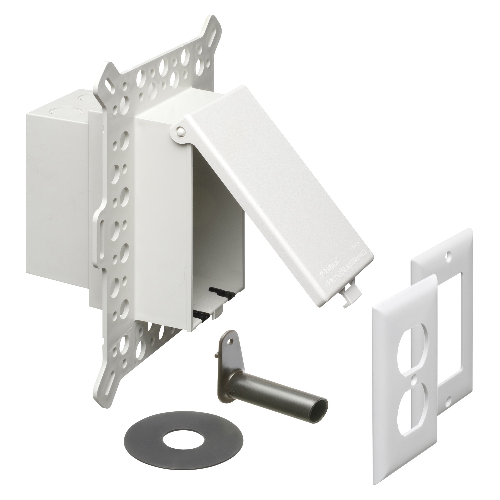

Arlington InBox™ DBVM1W DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gangs, 1 Outlets, 9.058 in L x 7.012 in W x 5.16 in H
Arlington InBox™ DBVM1W DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gangs, 1 Outlets, 9.058 in L x 7.012 in W x 5.16 in H
SKU: ARTDBVM1W
Manufacturer Part Number: DBVM1W
UPC: 018997143167
Documents
Features
- Vertical orientation
- One-piece, 22.0 cu-in recessed electrical box with weatherproof-in-use extra-duty cover for stucco over masonry or wood construction
- Non-metallic cover and base
- Accepts most single gang wiring devices and uses standard indoor wallplates or a GFCI cover plate
- Box and white cover are textured/ paintable
- UV rated plastic for long outdoor life
- One-piece assembly replaces the installation of an electrical box and bubble cover assembly
- Installs in the wall, so less of it shows outside
- Holes in flange allow stucco to bond firmly
- Cover is removable for easier device installation
- For cementitious/fiber rigid lap siding
- Bug plugs ship installed in all IN BOX styles to seal unused cord hole openings
Specification
| Material | Plastic |
|---|---|
| Mounting Type | Surface |
| Number of Gangs | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cable Entry | Knockout |
| Capacity | 22 cu-in |
| Catalog ID | ARTDBVM1W |
| Color | White |
| Enclosure Type | NEMA 3R |
| Video | https://www.youtube.com/watch?v=P6kSTpRTNYw |
| Includes | (1) Standard Duplex, (1) Standard GFCI Faceplate, (1) NM Cable Connector, (1) Block Bushing with Washer, (1) In-place and (1) Disposable Mud Cover |
| Standard & Approvals | UL File No E170558, CSA File No LR49636, 2015 CEC (Rule 26-702), NEMA 3R, NEC 406.9 (b) |
| Application | New Construction Stucco, Textured Surfaces, and Rigid Siding |
| Type | Extra-Duty Low Profile Weatherproof |
| Dimensions | 9.058 in L x 7.012 in W x 5.16 in H |
