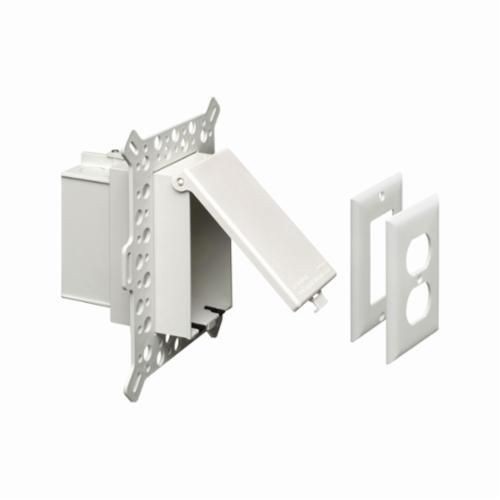

Arlington InBox™ DBVMA1W DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gangs, 9.058 in L x 7.012 in W x 5.16 in H
Arlington InBox™ DBVMA1W DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gangs, 9.058 in L x 7.012 in W x 5.16 in H
SKU: ARTDBVMA1W
Manufacturer Part Number: DBVMA1W
UPC: 018997776341
Documents
Short Description
Features
- IN BOX's one-piece assembly replaces the installation of an electrical box and bubble cover assembly
- Adjustable flange depth fits any foam board thickness or custom finish in concrete block and stucco applications
- Installs in the wall, so less of it shows outside
- Adjusts for finishes from 1/4 to 2-1/2 in thick in walls, from 2-3/4 to 5 in deep
- Install option cover is removable for easier device installation
- No gaskets required
Specification
| Material | Plastic |
|---|---|
| Mounting Type | Ceiling |
| Number of Gangs | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=Hs4gp1-rwvE&feature=youtu.be |
| Capacity | 22 cu-in |
| Catalog ID | ARTDBVMA1W |
| Color | White |
| Dimensions | 9.058 in L x 7.012 in W x 5.16 in H |
| Enclosure Type | NEMA 3R |
| Type | Low Profile Vertical |
| Application | For foam wall systems |
| Standard & Approvals | UL Listed, CSA Certified |
| Includes | (1) Standard Duplex, (1) Standard GFCI Face Plate, (4) Installation Screws, (1) NM Cable Connector and An In-Place, Disposable Mud Cover |
