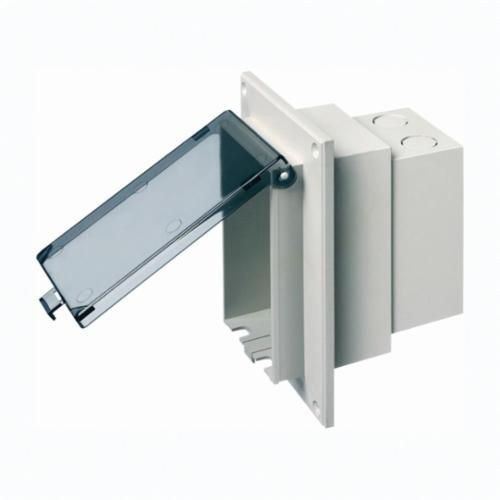

Arlington InBox™ DBVR1C DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gang, 1 Outlet, 7.186 in L x 4.934 in W x 5.16 in D
Arlington InBox™ DBVR1C DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gang, 1 Outlet, 7.186 in L x 4.934 in W x 5.16 in D
SKU: ARTDBVR1C
Manufacturer Part Number: DBVR1C
UPC: 018997143136
Features
- Vertical orientation
- One-piece, 22.0 cu-in recessed electrical box with weatherproof-in-use extra-duty cover for flat surfaces in existing construction
- Non-metallic cover and base
- Accepts most single gang wiring devices and uses standard indoor wallplates or a GFCI cover plate
- Box and white cover are textured/ paintable
- UV rated plastic for long outdoor life
- IN BOX's one-piece assembly replaces the installation of an electrical box and bubble cover assembly
- Installs in the wall, so less of it shows outside
- Use the retrofit IN BOX on plywood, T-111, and other flat surfaces
- Cover is removable for easier device installation
- No gaskets required
- Bug plugs ship installed in all IN BOX styles to seal unused cord hole openings
Specification
| Material | Plastic |
|---|---|
| Mounting Type | Surface |
| Number of Gangs | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cable Entry | Knockout |
| Capacity | 22 cu-in |
| Color | Clear |
| Enclosure Type | NEMA 3R |
| Catalog ID | ARTDBVR1C |
| Video | http://www.youtube.com/v/Hs4gp1-rwvE |
| Includes | (1) Standard Duplex, (1) Standard GFCI Faceplate, (1) Set Installation Screws, (1) NM Cable Connector and (1) Roll of Caulk |
| Standard & Approvals | UL File No E170558, CSA File No LR49636, 2015 CEC (Rule 26-702), NEMA 3R, NEC 406.9 (b) |
| Application | For flat surface retrofit construction |
| Type | Extra-Duty Low Profile Weatherproof |
| Series | DB |
| Dimensions | 7.186 in L x 4.934 in W x 5.16 in D |
