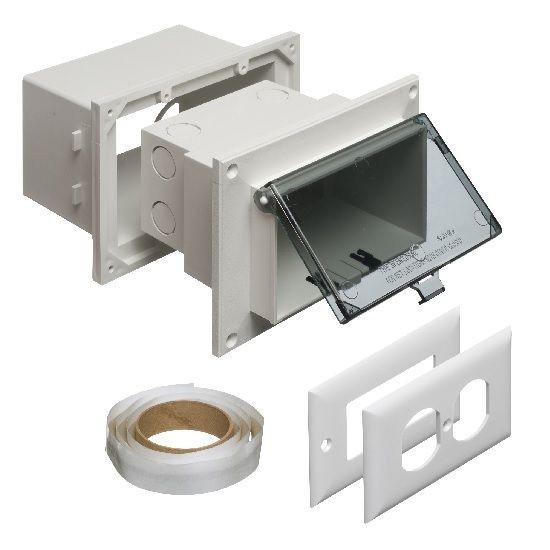

Arlington InBox™ DHB1C DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gangs, 1 Outlets, 4.934 in L x 7.186 in W x 5.283 in H

Selected Arlington InBox™ DHB1C DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gangs, 1 Outlets, 4.934 in L x 7.186 in W x 5.283 in H
Arlington InBox™ DHB1C DB Series 1-Piece Low Profile Electrical Box, Plastic, 22 cu-in Capacity, 1 Gangs, 1 Outlets, 4.934 in L x 7.186 in W x 5.283 in H

Documents

Short Description

22.0 cu. inch recessed electrical box with weatherproof-in-use extra-duty cover for new brick construction. Includes a protective adapter sleeve that keeps mortar out. Non-metallic cover and base. Accepts most single gang wiring devices and uses standard indoor wall plates or a GFCI cover plate. White box and cover are textured/paintable. UV rated plastic for long outdoor life.

Features

  • In BOXs one-piece assembly replaces the installation of an electrical box and bubble cover assembly
  • Adapter sleeve, with loops in back for tying off cable, keeps mortar out of the box while brick mason works
  • The clean InBox™ slips into the sleeve for easy installation
  • Built-in anchor tabs seat InBox™ sleeve into mortar for a super secure installation
  • Installs in the wall, so less of it shows outside
  • Cover is removable for easier device installation
  • No gaskets required
  • Horizontal orientation cover

Specification

Material
Plastic
Number of Gangs
1
Minimum Order Qty
1
Order Interval
1
Capacity
22 cu-in
Enclosure Type
NEMA 3R
Finish
Textured
Type
Extra-Duty Low-Profile Weatherproof
Application
For new brick construction
Standard & Approvals
CSA Certified, Meets 2014 NEC Section 406.9 Requirements, UL Listed
Dimensions
4.934 in L x 7.186 in W x 5.283 in H
Color
White Clear
Catalog ID
ARTDHB1C
