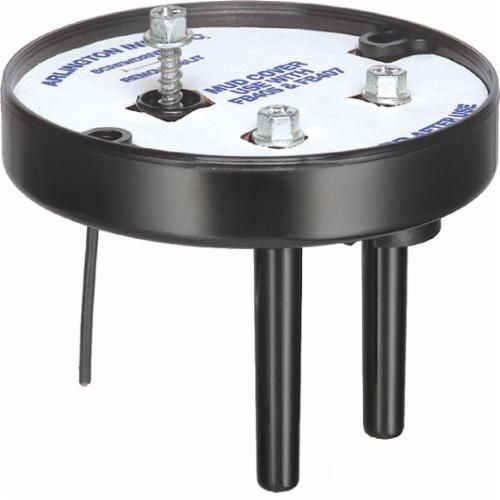

Arlington FB4070 Fan/Fixture Mounting Box, Plastic, 8 cu-in Capacity, 2.405 in H
Arlington FB4070 Fan/Fixture Mounting Box, Plastic, 8 cu-in Capacity, 2.405 in H
SKU: ARTFB4070
Manufacturer Part Number: FB4070
UPC: 018997281029
Documents
Features
- No loose parts to misplace - totally self-contained
- Fan/fixture installation screws are parked and ready for easy fan/fixture bracket installation
- Combination hex/Phillips head screws for easy installation with power screwdrivers
- 2 hr fire rating
- 70 lb fan, 200 lb fixture UL rated and 50 lb fan/fixture CSA rated
- Installs on 5/8 in drywall
Specification
| Material | Plastic |
|---|---|
| Mounting Type | Ceiling |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL File No. E170558, CSA File No. LR49636 |
| Dimensions | 2.405 in H |
| Capacity | 8 |
| Color | Black |
| Includes | Ready-to-Tighten Center Screw, Installed Non-Metallic Cable Connector, Mud Cover, Second Knockout and (2) Screws |
| Diameter | 4/1/2004 12:00:00 AM |
| Application | For double joists or wood I-beams |
