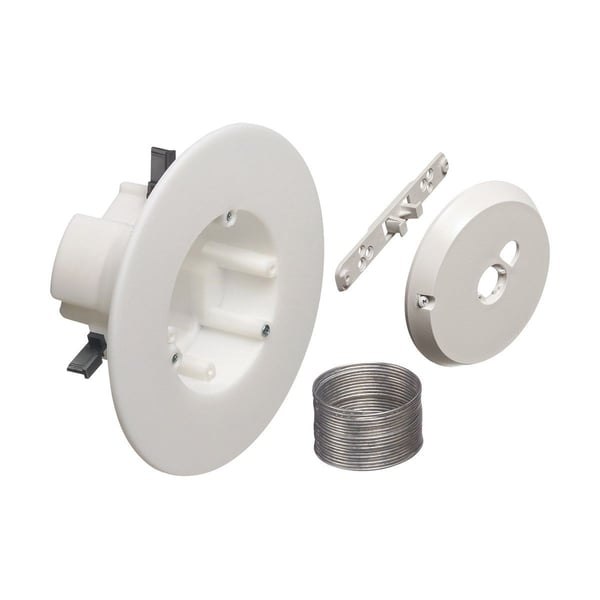

Arlington Cam-Box™ FLC430 Security Camera Mounting Kit, Plastic, Painted, White

Selected FLC430Arlington Cam-Box™ FLC430 Security Camera Mounting Kit, Plastic, Painted, White
FLC430Arlington Cam-Box™ FLC430 Security Camera Mounting Kit, Plastic, Painted, White

Documents

Short Description

Use Arlington's CAM-LIGHT™ KIT to install any security camera (with base diameter up to 7 in) on a suspended or drywall ceiling panel. For power or low voltage, it installs FAST with a 4 in hole saw, saving time and money.It's a tested assembly that holds up to 50 lbs on a suspended or drywall ceiling. It fits any security camera hole pattern because you drill the holes in the mounting plate. Larger cameras (base diameter from 4.5 in to 7 in) mount directly to the box flange.

Features

  • Designed to install security cameras to a suspended ceiling panel-fast with a 4 in hole saw
  • Rated up to 50 lb on a suspended ceiling (or drywall ceiling) in combination with the drop wire for support
  • Rated up to 10 lbs on a drywall ceiling without drop wire
  • Rated up to 7 lbs on walls
  • For security cameras, it fits any hole pattern because you drill the holes in the appropriate location in the flange, cameras with mounting holes set wider than 4.5 in apart install directly to the box flange
  • Mounting wings hold bracket securely against wall when screws are tightened
  • White, non-metallic, paintable flange
  • Steel version for use where metal raceways are required
  • Steel version installs with 4-1/2 in hole saw
  • 1/2 in and 3/4 in knockout
  • Box rotates in either direction for proper camera position

Specification

Material
Plastic
Application
For installation of most security cameras on suspended ceilings, drywall ceiling, exterior soffits, or wall
Standard & Approvals
UL Listed
Dimensions
7.38 in Dia x 3.788 in D
Color
White
