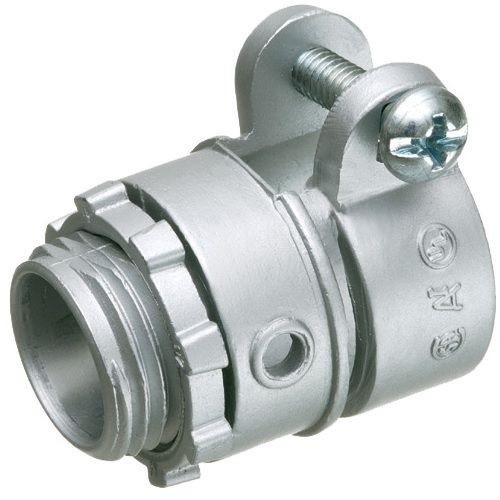

Arlington L421 Single Screw Cable Connector With 0.62 in Dia Round End Stop, 1/2 in Trade, 1/2 in Knockout, 0.85 to 0.91 in Cable Openings, Die Cast Zinc

Selected Arlington L421 Single Screw Cable Connector With 0.62 in Dia Round End Stop, 1/2 in Trade, 1/2 in Knockout, 0.85 to 0.91 in Cable Openings, Die Cast Zinc
Arlington L421 Single Screw Cable Connector With 0.62 in Dia Round End Stop, 1/2 in Trade, 1/2 in Knockout, 0.85 to 0.91 in Cable Openings, Die Cast Zinc

Documents

Features

  • Concrete-tight construction
  • 1/2 in knockout
  • Threaded X Squeeze connection
  • 0.405 in thread length
  • Single cable opening
  • 1/2 in end stop
  • Screw

Specification

Material
Die Cast Zinc
Mounting Type
Screw
Suitable For Use With
Flexible Metal Conduit
Trade Size
1/2 in
Type
Non-Insulated Throat Straight
Application
For use with flex armored cable and metal clad cable
Standard & Approvals
cULus Listed, CSA Certified, RoHS Complaint
Dimensions
1.42 in L x 1.42 in W x 1.425 in H
Cable Openings
0.85 - 0.91 in
