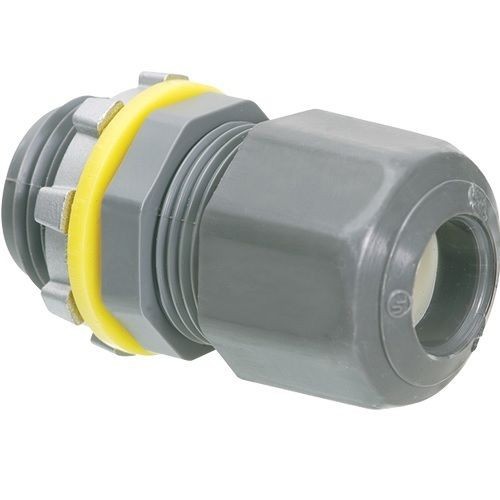

Arlington LPCG757 Low Profile Liquidtight Oiltight Strain Relief Cord Connector, 3/4 in Trade, 0.385 to 0.75 in Cable Openings, Nylon/Polyethylene/Santoprene™/Zinc

Selected FilesARTLPCG757
FilesARTLPCG757

Documents

Short Description

Arlington’s low Profile cord Connector has a unique grommet with gripping fingers. these connectors have the largest cord range in the industry, so there are fewer items to stock. A liquidtight seal and superior pullout resistance is accomplished by just tightening the nut. A sealing ring is furnished to assure a liquid-tight seal when installing in non-threaded openings.

Features

  • Non-metallic, liquidtight oiltight
  • Furnished with sealing ring and locknut
  • Santoprene grommet, polyethylene sealing ring, zinc locknut
  • 0.600 in thread length
  • 1 in size

Specification

Material
Nylon
Trade Size
3/4 in
Type
Low Profile
Standard & Approvals
UL E105706, CSA LR49636, RoHS Complaint
Dimensions
1.23 in L x 1.23 in W x 2.25 in H
Angle
Straight
Cable Openings
0.385 - 0.75 in
Color
Gray
