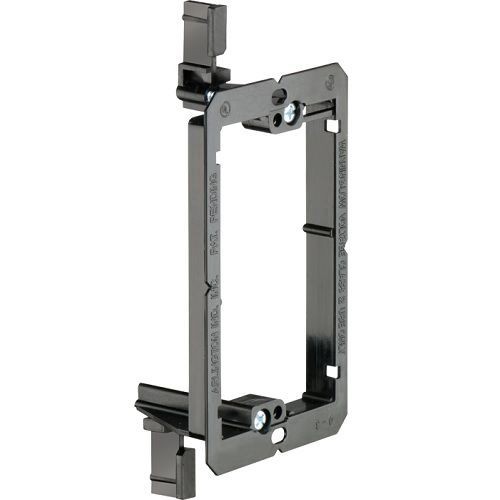

Arlington LV1 LV Series 1-Gang Low Voltage Mounting Bracket, For Use With Cable Management System, Surface Mount, Plastic

Selected Arlington LV1 LV Series 1-Gang Low Voltage Mounting Bracket, For Use With Cable Management System, Surface Mount, Plastic
Arlington LV1 LV Series 1-Gang Low Voltage Mounting Bracket, For Use With Cable Management System, Surface Mount, Plastic

Documents

Short Description

Arlington’s non-metallic, low voltage mounting brackets are the time and money-saving solution for faster and easier mounting of class 2 communications, computer and cable TV wiring. designed to mount wall plates flush, our mounting brackets have features that deliver a better-looking, easy to install job; specially designed screw holes, thin front lip and more.

Features

  • Adjusts to fit 1/4 to 1 in thick wallboard, paneling, or drywall
  • Non-metallic better than metal and costs less too
  • Bracket is its own template for cutout
  • Mounting wings hold bracket securely against wall when screws are tightened
  • Single through 4-gang brackets for installations on existing construction
  • Designed to install low voltage class 2 only
  • Black color

Specification

Material
Plastic
Specifications
1 Gang
Application
For communications, cable TV and computer wiring
Standard & Approvals
UL E253895, CSA LR49636, RoHS Compliant
Dimensions
4.25 in H x 2.5 in W x 1.7 in D
