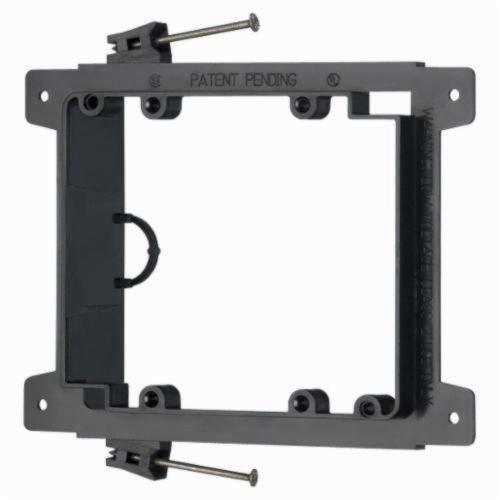

Arlington LVN2 LV Series 2-Gang Low Voltage Mounting Bracket, For Use With Cable Management System, Bolted-On Mount, Plastic
Arlington LVN2 LV Series 2-Gang Low Voltage Mounting Bracket, For Use With Cable Management System, Bolted-On Mount, Plastic
SKU: ARTLVN2
Manufacturer Part Number: LVN2
UPC: 018997002754
Short Description
Features
- Available in two styles, nail-on for wood studs, and screw-on for wood or metal studs, these low voltage brackets are made of non-conductive plastic to protect cable from damage
- Eliminates pushback
- Competitively priced cost less than plastic or steel mud rings
- Non-metallic low voltage mounting brackets
- Come complete with captive nails or screws, ready to install
- Built-in loop for tying off cable
- Nail-on bracket installs in 25% less time and the screw-on style in 50% less time than steel or plastic mud rings
- For new construction
- Cat 5 listed
- Single through 4-gang brackets for the installation of low voltage class 2 only
- Black color
Specification
| Material | Plastic |
|---|---|
| Mounting Type | Nail-On |
| Specifications | 2 Gang |
| Type | Low Voltage |
| Application | For fiber optic, cable TV and communications applications |
| Standard & Approvals | UL E253895, CSA LR49636, RoHS Compliant |
| Dimensions | 4.17 in H x 5.492 in W x 1.5 in D |
