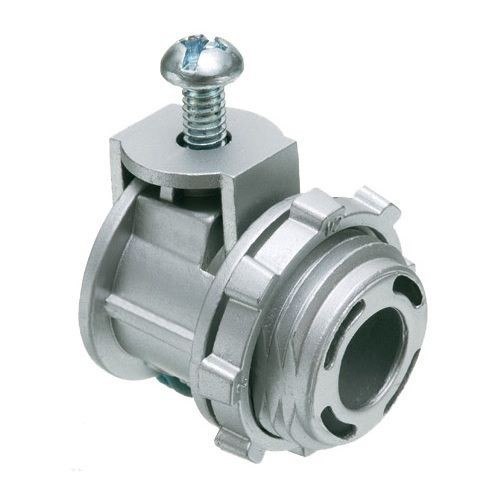

Arlington Saddlegrip® SG38 Straight Cable Connector With 0.4 in End Stop, 3/8 in Trade, 1/2 in Knockout, 0.405 to 0.612 in Cable Openings, Die Cast Zinc
Arlington Saddlegrip® SG38 Straight Cable Connector With 0.4 in End Stop, 3/8 in Trade, 1/2 in Knockout, 0.405 to 0.612 in Cable Openings, Die Cast Zinc
SKU: ARTSG38
Manufacturer Part Number: SG38
UPC: 018997180650
Documents
Features
- Single cable opening
- Straight angle
- 0.4 in end stop diameter
- Concrete-tight when taped
- Round open connector
- AC/AC90, MCI/MCI-A cable
Specification
| Knockout Size | 1/2 in |
|---|---|
| Material | Die Cast Zinc |
| Number of Conductors | 1 |
| Trade Size | 3/8 in |
| Application | For aluminum and steel flex |
| Standard & Approvals | UL 372D, CSA LR49636, RoHs Compliant |
| Cable Type | AC/AC90 |
| Connection Type | Threaded |
| Cable Openings | 0.405 - 0.612 in |
| Dimensions | 1 in L x 1.077 in W x 1.077 in H |
