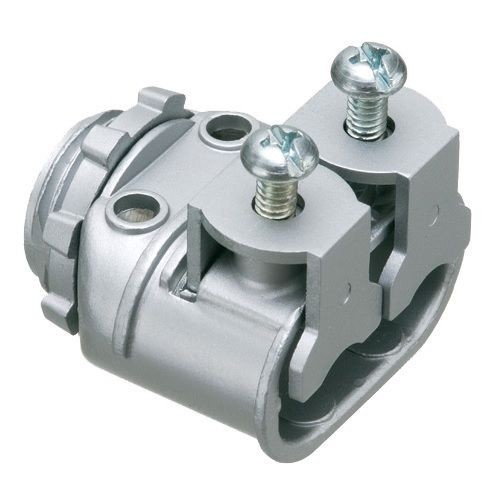

Arlington Saddlegrip® SG3838 Duplex Straight Cable Connector, 3/8 in Trade, 1/2 in Knockout, 0.445 to 0.612 in Cable Openings, Die Cast Zinc

Selected Arlington Saddlegrip® SG3838 Duplex Straight Cable Connector, 3/8 in Trade, 1/2 in Knockout, 0.445 to 0.612 in Cable Openings, Die Cast Zinc
Arlington Saddlegrip® SG3838 Duplex Straight Cable Connector, 3/8 in Trade, 1/2 in Knockout, 0.445 to 0.612 in Cable Openings, Die Cast Zinc

Documents

Features

  • Straight angle
  • Double cable opening
  • With independent securing of cables, can use two different size cables
  • Concrete-tight when taped
  • (2) 0.445 - 0.612 in cable opening
  • AC/AC90, MC/MCI-A cable
  • Clamp, (2) screw connection

Specification

Knockout Size
1/2 in
Material
Die Cast Zinc
Number of Conductors
2
Minimum Order Qty
1
Order Interval
1
Cable Openings
0.445 - 0.612 in
Cable Type
AC/AC90
Catalog ID
ARTSG3838
Connection Type
Threaded
Dimensions
1.526 in L x 0.78 in W x 0.78 in H
Trade Size
3/8 in
Type
Duplex
Application
For aluminum and steel flex
Standard & Approvals
UL 372D, CSA LR49636, RoHs Compliant
