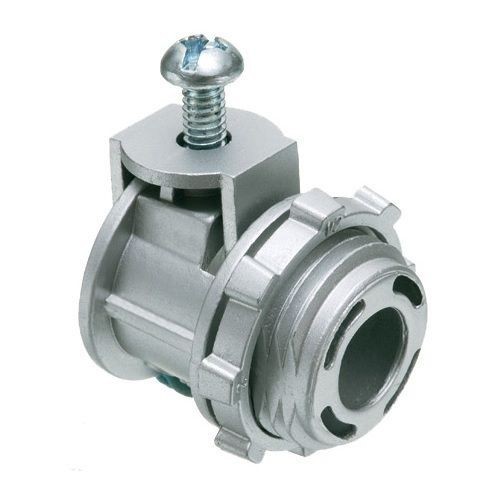

Arlington Saddlegrip® SG38A Straight Cable Connector With Insulated Throat, 3/8 in Trade, 1/2 in Knockout, 0.405 to 0.612 in Cable Openings, Die Cast Zinc
Arlington Saddlegrip® SG38A Straight Cable Connector With Insulated Throat, 3/8 in Trade, 1/2 in Knockout, 0.405 to 0.612 in Cable Openings, Die Cast Zinc
SKU: ARTSG38A
Manufacturer Part Number: SG38A
UPC: 018997801388
Documents
Features
- Straight angle
- Single cable opening
- 0.4 in end stop diameter
- Concrete-tight when taped
- AC/AC90, MCI/MCI-A cable
- Saddle, screw connection
Specification
| Knockout Size | 1/2 in |
|---|---|
| Material | Die Cast Zinc |
| Number of Conductors | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Connection Type | Threaded |
| Trade Size | 3/8 in |
| Dimensions | 1.09 in L x 1.077 in W x 1.077 in H |
| Catalog ID | ARTSG38A |
| Cable Type | AC/AC90 |
| Cable Openings | 0.405 - 0.612 in |
| Standard & Approvals | UL 372D, CSA LR49636, RoHs Compliant |
| Application | For aluminum and steel flex |
