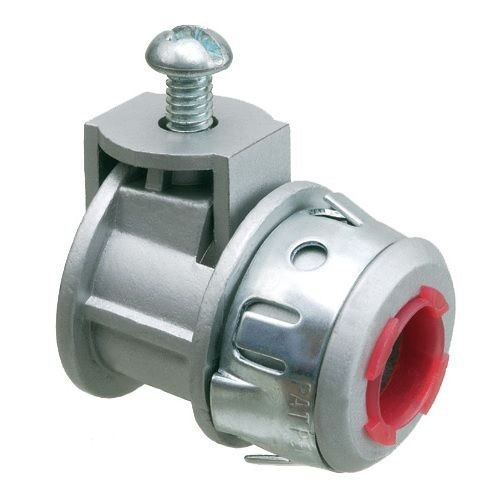

Arlington Saddlegrip® SNAP-TITE® SG38AST Straight Cable Connector With Insulated Throat, 3/8 in Trade, 1/2 in Knockout, 0.405 to 0.612 in Cable Openings, Die Cast Zinc

Selected Arlington Saddlegrip® SNAP-TITE® SG38AST Straight Cable Connector With Insulated Throat, 3/8 in Trade, 1/2 in Knockout, 0.405 to 0.612 in Cable Openings, Die Cast Zinc
Arlington Saddlegrip® SNAP-TITE® SG38AST Straight Cable Connector With Insulated Throat, 3/8 in Trade, 1/2 in Knockout, 0.405 to 0.612 in Cable Openings, Die Cast Zinc

Documents

Features

  • Straight angle
  • Single cable opening
  • 0.4 in end stop diameter
  • Concrete-tight when taped
  • AC/AC90, MCI/MCI-A cable
  • Snap-In, saddle screw connection

Specification

Knockout Size
1/2 in
Material
Die Cast Zinc
Number of Conductors
1
Minimum Order Qty
1
Order Interval
1
Cable Openings
0.405 - 0.612 in
Cable Type
AC/AC90
Catalog ID
ARTSG38AST
Connection Type
Snap-In
Dimensions
1.203 in L x 1.077 in W x 1.077 in H
Trade Size
3/8 in
Application
For aluminum and steel flex
Standard & Approvals
UL 372D, CSA LR49636, RoHs Compliant
