Atlas® IRH24L High Bay Fixture,) LED Lamp, 120/208/277/480 VAC, Black Housing

Selected Atlas® IRH24L High Bay Fixture,) LED Lamp, 120/208/277/480 VAC, Black Housing
Atlas® IRH24L High Bay Fixture,) LED Lamp, 120/208/277/480 VAC, Black Housing

Short Description

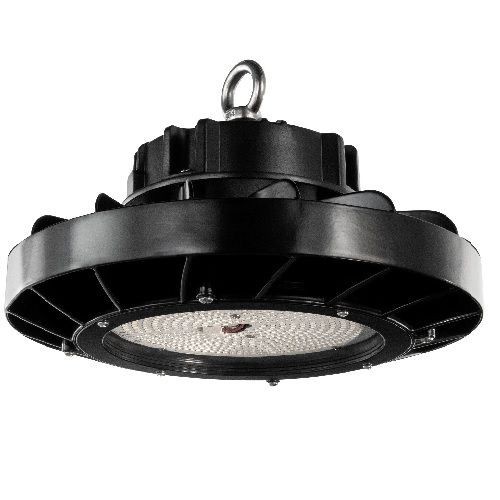

The LED round high bay is made of die cast aluminum with a clear tempered glass lens. The unit has a built-in heat sink and comes with a hook made of die cast aluminum for a strong and easy installation. A unique feature is the quick disconnected cable, it can quickly separate the driver from the LED module for easy maintenance.

Features

  • Mounting heights up to 30 ft
  • Listed for wet locations and IP65 rated protects against dust, airborne contaminants and liquids
  • 50 deg C ambient temperature rating

Specification

Housing Finish
Black
Housing Material
Die Cast Aluminum
Lamp Type
LED
Lamp Wattage
178.4 W
Lens Type
Clear Tempered Glass
Light Output
135 Lumens/W
Lumens
24000 Lumens
Mounting Type
Eye Bolt Suspension
Minimum Order Qty
1
Order Interval
1
Average Life
50000 hr
Ballast Type
0 to 10 VDC Dimming
Catalog ID
ATLIRH24L-50K
Color Rendering Index (CRI)
85
Color Temperature
5000 K
Dimensions
13.4 in Dia x 8.26 in H
Enclosure Type
IP65
Series
IRH
Voltage Rating
120/208/277/480 VAC
Application
Industrial Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, DLC Listed, UL/cUL Listed for Damp Locations
