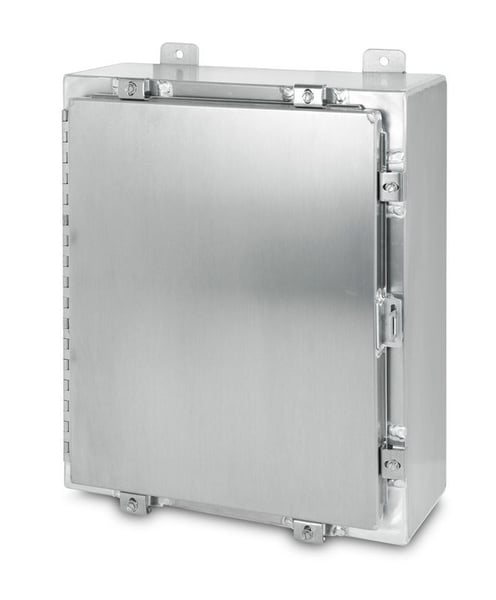

Austin Electrical Enclosures AB-24248NFA Aluminum Enclosure, 24 in H x 24 in W x 8 in D, Continuous Hinged/Gasketed/Padlockable/HASP cover, NEMA 4X Nema Rating, Aluminum
Austin Electrical Enclosures AB-24248NFA Aluminum Enclosure, 24 in H x 24 in W x 8 in D, Continuous Hinged/Gasketed/Padlockable/HASP cover, NEMA 4X Nema Rating, Aluminum
SKU: AUSAB-24248NFA
Manufacturer Part Number: AB-24248NFA
EAN: 0707353010259
UPC: 707353010259
Documents
Features
- All seams Continuously Welded and Ground Smooth
- Rolled lip around three sides of door and all sides of door opening for watertight seal
- Neoprene Gasket attached to door with Oil Resistant Adhesive
- Clamps on three sides of door for watertight seal
- Aluminum Continuous Hinge
- Stainless Steel external hardware
- Hasp and staple provided for padlocking
- External Mounting Feet
- Standard plastic self-adhesive print pocket
- Standard collar studs for mounting optional panel
- Custom Size or Construction
- 20 lb weight
Specification
| Type | Aluminum Enclosure |
|---|---|
| Width | 24 in |
| Standard & Approvals | CUL 508 Type 4X, NEMA Type 4X, UL 508 Type 4X |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | AUSAB-24248NFA |
| Color | Gray |
| Cover Type | Continuous Hinged/Gasketed/Padlockable/HASP |
| Depth | 8 in |
| Finish | Painted |
| Height | 24 in |
| Material | Aluminum |
| NEMA Rating | NEMA 4X |
| EANUCC13 | 0707353010259 |
