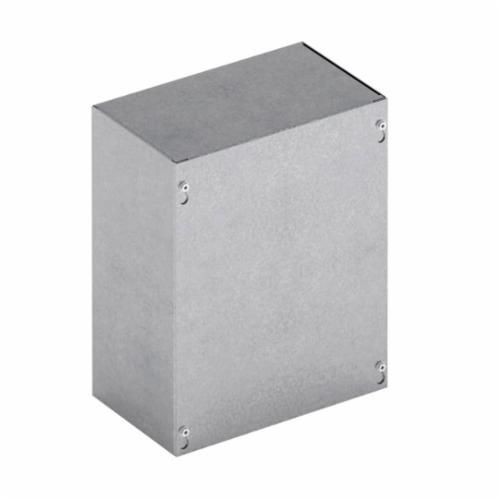

B-Line 10106 SCGV NK Junction Box, 10 in H x 10 in W x 6 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel
B-Line 10106 SCGV NK Junction Box, 10 in H x 10 in W x 6 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel
SKU: B-L10106SCGV-NK
Manufacturer Part Number: 10106 SCGV NK
UPC: 782051002560
Documents
Features
- Wash and phosphate undercoat or galvanized Steel
- ANSI 61 gray acrylic electro coated finish
- Enclosure and cover are fabricated from code gauge Steel or galvanized Steel
- Enclosure body has mounting holes on the back
- Enclosures are available with or without knockouts on the sides, top and bottom ends
- Cover is secured to the body with plated hex head combo screws
- Keyhole slots provided in the cover allow easy access to the inside without removing the screws
- Hole provision for optional ground lug kit
- A2 discount schedule
- AN0 and AX1 subclass
- 1/4 in Dia mounting hole
- (2) 1/2-3/4, (2) 3/4-1 and 1-1-1/4 each side knockout pattern
- (2) 1/2-3/4, (2) 3/4-1 and 1-1-1/4 top and bottom knockout pattern
- 16 ga steel
- 10 in height
Specification
| Material | Steel |
|---|---|
| NEMA Rating | NEMA 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | B-L10106SCGV-NK |
| Color | ANSI 61 Gray |
| Cover Type | Screw |
| Depth | 6 in |
| Finish | Galvanized |
| Width | 10 in |
| Standard & Approvals | UL 50 Type 1, CSA C22.2 NO 40 Type 1, NEMA 1 |
