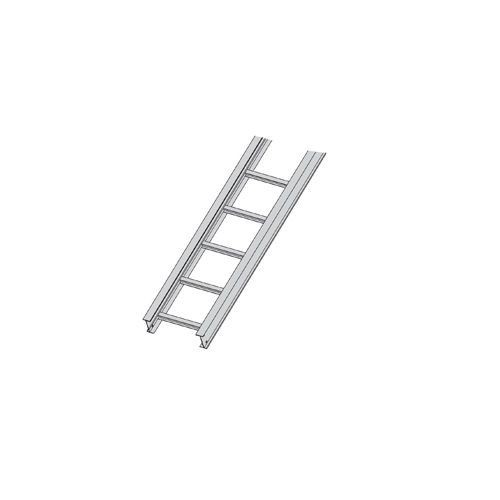

B-Line 24A09-24-144 24A Series II Straight Section Cable Tray, 3 in D Loading, 487 ft-lb, 12 ft L x 24 in W, 6063-T6 Aluminum

Pick Up Only
Selected B-Line 24A09-24-144 24A Series II Straight Section Cable Tray, 3 in D Loading, 487 ft-lb, 12 ft L x 24 in W, 6063-T6 Aluminum
B-Line 24A09-24-144 24A Series II Straight Section Cable Tray, 3 in D Loading, 487 ft-lb, 12 ft L x 24 in W, 6063-T6 Aluminum

Short Description

Aluminum cable trays are fabricated from structural grade "copper free" (marine grade) aluminum extrusions. Aluminum's excellent corrosion resistance is due to its ability to form an aluminum oxide film that when scratched or cut reforms the original protective film. Aluminum has excellent resistance to "weathering" in most outdoor applications. Aluminum cable tray has excellent corrosion resistance in many chemical environments and has been used for over thirty years in petro-chemical plants and paper mills along the gulf coast from Texas to Florida. Typically, aluminum cable trays can perform indefinitely, with little or no degradation over time, making it ideal for many chemical and marine environments. The resistance to chemicals, indoor and outdoor, can best be determined by tests conducted by the user with exposure to the specific conditions for which it is intended.

Features

  • Cable trays will support without collapse a 200 lb concentrated load over and above published loads
  • Safety factor is 1.5
  • 1 in cable bearing surface
  • Copper free marine grade
  • 487/284/181/126/93/71 lb/ft load
  • 6/8/10/12/14/16 ft span
  • 0.001/0.003/0.008/0.016/0.03/0.052 deflection multiplier
  • Design factors for two rails is 1.05 sq-in

Specification

Length
12
Loading Depth
3
Material
6063-T6 Aluminum
Overall Height
4.12
Rung Spacing
9
Series
24A Series II
Siderail Height
4
Type
Straight Section
Width
24
Standard & Approvals
UL Listed, CSA C22.2 NO 126, NEMA VE 1
BottomType
Ladder
Capacity
487
Includes
9A-1004 Wedge Lock Splice Plate Pair with 3/8 in Zinc Plated Hardware
