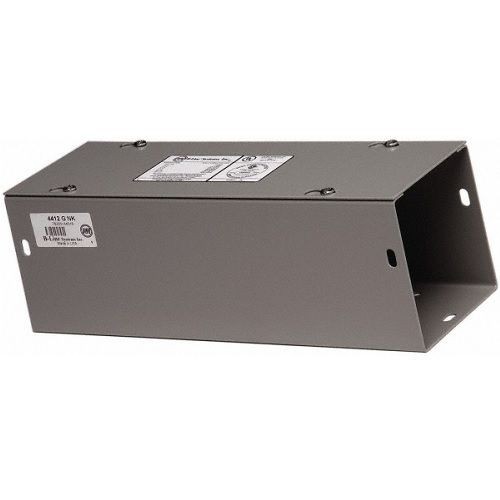

B-Line 4436 G NK Straight Section Through Hole Wireway, 36 in L x 4 in W x 4 in H, Screw Cover, Steel
B-Line 4436 G NK Straight Section Through Hole Wireway, 36 in L x 4 in W x 4 in H, Screw Cover, Steel
SKU: B-L4436G-NK
Manufacturer Part Number: 4436 G NK
UPC: 782051101119
Documents
Features
- Wireway body and cover are fabricated from code gauge Steel or galvanized Steel
- Wireway body has mounting holes on the back
- Cover is secured to the body with plated screws
- Keyhole slots are furnished on the wireway cover which allow easy access to the inside without removing the screws
- Wireway exceeding 72 in has two overlapping covers
- Variety of fittings allow runs which can change direction, junction and terminate
- Standard wireway connectors (sold separately) have a gate feature which can swing completely open allowing for lay-in of wire and cable
- Interchangeable with type 1 hinge cover wireway and fittings when HSCA connector is used
- A2 discount schedule
- AK1 and Z40 subclass
- Wash and phosphate undercoat or galvanized Steel
- 2-3/4 in hole spacing
- 16 ga steel
- 4 in depth
Specification
| Height | 4 in |
|---|---|
| Length | 36 in |
| Material | Steel |
| NEMA Rating | NEMA 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | B-L4436G-NK |
| Color | ANSI 61 Gray |
| Cover Type | Screw |
| Finish | Acrylic Electro Coated/Painted |
| Application | For cable and wire junction, distribution and termination |
| Standard & Approvals | UL 870, CSA C22.2 NO 26, Type 1 |
