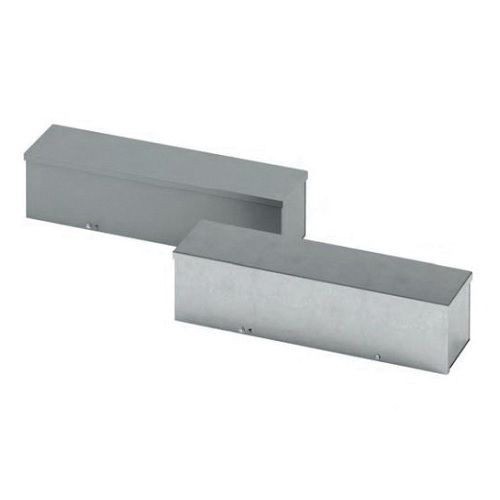

B-Line 4436 GRT Straight Section Wiring Trough With Knockout, 36 in L x 4 in W x 4 in H, Screw Cover, Galvaneal Steel
B-Line 4436 GRT Straight Section Wiring Trough With Knockout, 36 in L x 4 in W x 4 in H, Screw Cover, Galvaneal Steel
SKU: B-L4436GRT
Manufacturer Part Number: 4436 GRT
UPC: 782051140774
Documents
Features
- Wash and phosphate undercoat or galvanized steel
- ANSI 61 gray acrylic electro coated finish
- Wireway body and cover are fabricated from 16 ga galvaneal steel for painted or galvanized steel
- Wireway body has embossed mounting holes on the back
- Wireway is available with or without knockouts on the bottom end only
- Cover is held secure by sliding it under the top end flange and fastening it with plated screws on the bottom end flange
- Sealing screws and lances are located at each end of the wireway cover
- Wireway exceeding 72 in L has two covers, a removable center channel and body supports
- 4 in D
Specification
| Height | 4 in |
|---|---|
| Knockout Size | 3/4 in, 1/2 in, 1-1/4 in, 1 in |
| Length | 36 in |
| Material | Steel |
| NEMA Rating | NEMA 3R |
| Number of Knockouts | 11 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | ANSI 61 Gray |
| Cover Type | Screw |
| Finish | Painted |
| Type | Straight Section |
| Standard & Approvals | UL 870 Type 3R, CSA C22.2 NO 26 Type 3R, NEMA 3R |
| Application | Cable and Wire Junction, Distribution, Termination and Houses Runs of Control and Power Cable |
| Catalog ID | B-L4436GRT |
