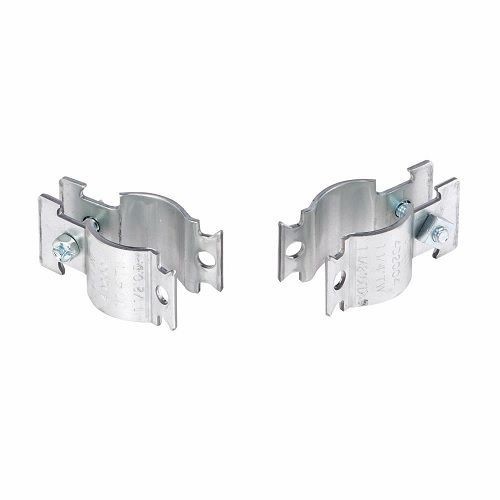

B-Line 4Dimension® 4D2012PAZN 4D2000 Pre-Assembled Rigid Universal Pipe Clamp, 1-1/2 in Conduit, 800/400 lb Load, 1-7/8 in OD, Steel

Selected B-Line 4Dimension® 4D2012PAZN 4D2000 Pre-Assembled Rigid Universal Pipe Clamp, 1-1/2 in Conduit, 800/400 lb Load, 1-7/8 in OD, Steel
B-Line 4Dimension® 4D2012PAZN 4D2000 Pre-Assembled Rigid Universal Pipe Clamp, 1-1/2 in Conduit, 800/400 lb Load, 1-7/8 in OD, Steel

Documents

Short Description

B-Line has long been a leading manufacturer of support systems and electrical enclosures for the mechanical, electrical and telecommunications industries. Our Spring Steel Fastener line includes a wide range of quality fastening systems for electrical, mechanical and telecommunication applications. Our Spring Steel Fasteners include products for attachment to metal studs, steel beams, acoustical tee, drywall, purlins, and channel.

Features

  • Interchangeable with 4Dimension and traditional strut in dove-tail and open sides)
  • Safety factor of 3 (open side and dove-tail side)
  • 12 ga thickness ASTM A1011 33000 PSI min. yield
  • Patent Pending
  • Pre-Assembled
  • 800 lb Open, 400 lb dove-tail Vertical, 100 lb Open, 65 lb dove-tail Horizontal load capacity
  • Low Carbon Steel material

Specification

Load Capacity
800/400 lb
Material
Steel
Outside Diameter
1-7/8 in
Minimum Order Qty
1
Order Interval
1
Catalog ID
B-L4D2012PAZN
Conduit Size
1-1/2 in
Dimensions
3.009 in L x 2.259 in W x 1.25 in H
Finish
Zinc Plated
Specifications
5/16-18 Hardware Size
Suitable For Use With
Strut Fittings and BF-Fittings
Type
Rigid
Includes
Combination Recess Hex Head Machine Screw and Square Nut
