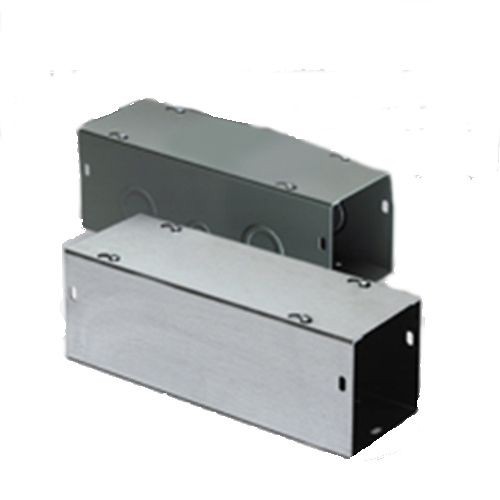

B-Line 6624 GGV NK Straight Section Through Hole Wiring Trough, 24 in L x 6 in W x 6 in H, Screw Cover, Steel

Selected FilesB L6624GGV NK
FilesB L6624GGV NK

Documents

Features

  • Wireway body and cover are fabricated from code gauge steel or galvanized steel
  • Wireway body has mounting holes on the back
  • Cover is secured to the body with plated screws
  • Keyhole slots are furnished on the wireway cover which allow easy access to the inside without removing the screws
  • Wireway exceeding 72 in L has two overlapping covers
  • Variety of fittings allow runs which can change direction, junction and terminate
  • Standard wireway connectors (sold separately) have a gate feature which can swing completely open allowing for lay in of wire and cable
  • Interchangeable with type 1 hinge cover wireway and fittings when HSCA connector is used
  • A2 discount schedule
  • AK1 and Z40 subclass
  • Wash and phosphate undercoat or galvanized steel finish
  • Without knockout

Specification

Height
6 in
Length
24 in
Material
Steel
NEMA Rating
NEMA 1/IP30
Type
Straight Section
Width
6 in
Application
Control and Power Cable, Cable and Wire Junction, Distribution and Termination
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, UL 870, CSA C22.2 No. 26, IEC 60529
Color
Gray
Cover Type
Screw
Finish
Acrylic Electro Coated/Pre-Galvanized
