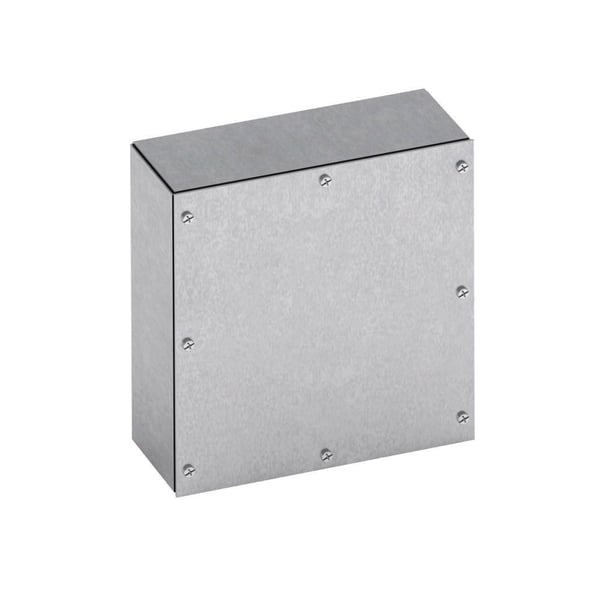

B-Line 664 SCG Junction Box, 6 in H x 6 in W x 4 in D, Screw Cover, NEMA 3/12/IP66 NEMA Rating, Steel
B-Line 664 SCG Junction Box, 6 in H x 6 in W x 4 in D, Screw Cover, NEMA 3/12/IP66 NEMA Rating, Steel
SKU: B-L664SCG
Manufacturer Part Number: 664 SCG
UPC: 782051108569
Documents
Features
- Enclosure and cover are fabricated from code gauge G-90 grade galvanized Steel
- All continuous welded seams are finished smooth
- Enclosure standard without knockouts
- Cover is attached with gasketed screws
- Cover has a fixed, oil and water resistant gasket
- NO 10-32 weldnut is furnished for optional ground lug kit
- Zinc-rich coating over all external welds
- A2 discount schedule
- AR0 subclass
- 14 ga body and 14 ga cover
- 6 in height
Specification
| Material | G-90 Galvanized Steel |
|---|---|
| Mounting Type | Wall |
| NEMA Rating | NEMA 3 |
| Width | 6 in |
| Application | For indoor or outdoor use |
| Standard & Approvals | UL 508 Type 3/12, NEMA 3/12 |
| Cover Type | Gasketed Screw |
| Depth | 4 in |
| Finish | Bright Galvanized |
