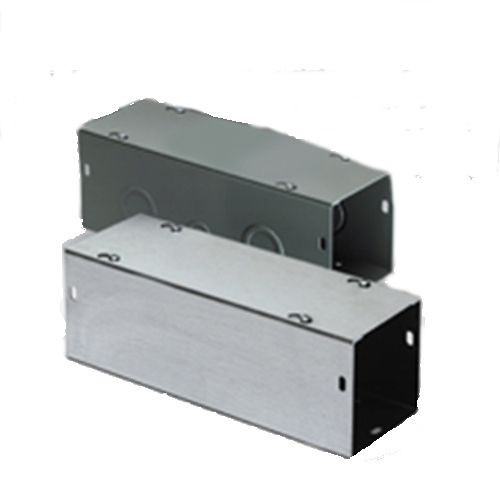

B-Line 6648 GGV NK Straight Section Through Hole Wiring Trough, 48 in L x 6 in W x 6 in H, Screw Cover, Steel
B-Line 6648 GGV NK Straight Section Through Hole Wiring Trough, 48 in L x 6 in W x 6 in H, Screw Cover, Steel
SKU: B-L6648GGV-NK
Manufacturer Part Number: 6648 GGV NK
UPC: 782051007213
Documents
Features
- Wireway body and cover are fabricated from code gauge steel or galvanized steel
- Wireway body has mounting holes on the back
- Cover is secured to the body with plated screws
- Keyhole slots are furnished on the wireway cover which allow easy access to the inside without removing the screws
- Wireway exceeding 72 in L has two overlapping covers
- Variety of fittings allow runs which can change direction, junction and terminate
- Standard wireway connectors (sold separately) have a gate feature which can swing completely open allowing for lay in of wire and cable
- Interchangeable with type 1 hinge cover wireway and fittings when HSCA connector is used
- A2 discount schedule
- AK1 and Z40 subclass
- Wash and phosphate undercoat or galvanized steel finish
- Without knockout
Specification
| Height | 6 in |
|---|---|
| Length | 48 in |
| Material | Steel |
| NEMA Rating | NEMA 1/IP30 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | B-L6648GGV-NK |
| Color | Gray |
| Cover Type | Screw |
| Finish | Acrylic Electro Coated/Pre-Galvanized |
| Type | Straight Section |
| Width | 6 in |
| Application | Control and Power Cable, Cable and Wire Junction, Distribution and Termination |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, UL 870, CSA C22.2 No. 26, IEC 60529 |
