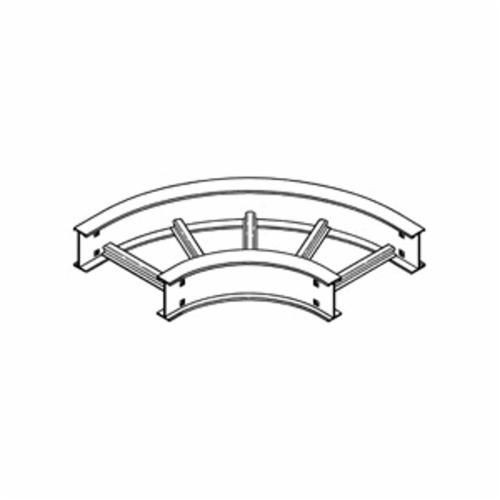

B-Line 6A-06-90HB12 Horizontal Bend, 6 in W Tray, 90 deg, 12 in Bend Radius, Aluminum

Selected 6A-06-90HB12B-Line 6A-06-90HB12 Horizontal Bend, 6 in W Tray, 90 deg, 12 in Bend Radius, Aluminum
6A-06-90HB12B-Line 6A-06-90HB12 Horizontal Bend, 6 in W Tray, 90 deg, 12 in Bend Radius, Aluminum

Documents

Short Description

As one of the largest manufacturers of Ladder Cable Tray, B-Line provides a variety of options, materials and finishes to meet virtually any commercial or industrial application need. B-Line Ladder Cable Tray is designed and tested for ladders up to 36 in wide. Rung connections are made using a multiple-point welding system, that results in unmatched strength and reliability. All trays are designed to support a 200 lb. concentrated load beyond the cataloged cable load. Our Steel Ladder Cable Tray is available in both light-duty with a C-Shaped side rail and heavy-duty with B-Line's unique I-Beam side rail. Our lightweight and durable Aluminum Ladder Cable Tray is constructed of marine-grade aluminum, making it ideal for a variety of applications, both indoor and outdoor. The I-Beam side rail provides additional strength while using less material.

Features

  • Use with series 2, 3, 4 and 5 cable tray fittings

Specification

Height
6 in
Length
18 in
Material
Aluminum
Rung Spacing
9 in
Tray Width
6 in
Application
Indoor/Outdoor Use
Standard & Approvals
5 in NEMA
Angle
90 deg
Bend Radius
12 in
Includes
Pair of Splice Plates with Hardware
