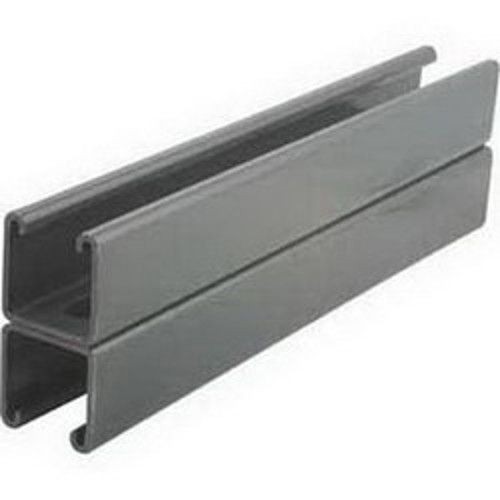

B-Line B22A-120GLV Back to Back Solid Metal Framing Channel, 12 ga THK, 120 in L
B-Line B22A-120GLV Back to Back Solid Metal Framing Channel, 12 ga THK, 120 in L
SKU: B-LB22AGALV10
Manufacturer Part Number: B22A-120GLV
UPC: 781011217303
Documents
Short Description
Order in increments of 10
Priced per foot
Eaton's metal framing support system provides an economical solution for electrical, mechanical and industrial supports and is designed with many time-saving features. They are fully adjustable and reusable, with a complete line of channels, fittings and accessories for multi-purpose applications. Channel and fittings can be taken apart for reuse as quickly as they were assembled, producing substantial savings in time and labor, yet they provide the strength of welded construction.
Features
- Metal framing channel is cold formed on our modern rolling mills from 12 Ga. (2.6mm), 14 Ga. (1.9mm), and 16 Ga. (1.5mm) low carbon steel strips
- A continuous slot with inturned lips provides the ability to make attachments at any point
- Bolted framing
Specification
| Length | 120 in |
|---|---|
| Material | ASTM A653 SS Cold Formed Low Carbon Steel |
| Thickness | 12 ga |
| Type | Back to Back |
| Width | 1-5/8 in |
| Standard & Approvals | RoHS Compliant |
| Finish | Pre-Galvanized |
| Depth | 1-5/8 in |
