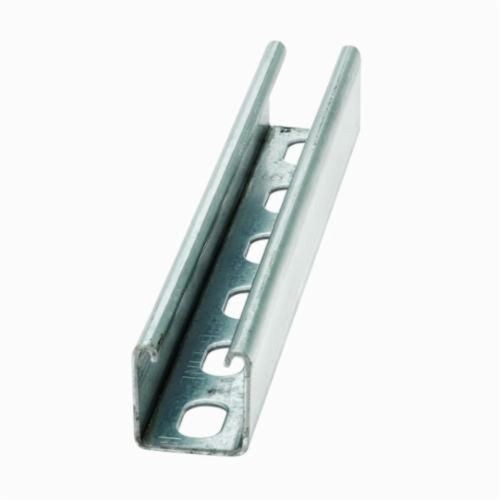

B-Line B22SH-240SS4 Slotted Single Metal Framing Channel, 9/16 x 7/8 in Slots, 2 in Slot Spacing, 12 ga THK, 20 ft L
B-Line B22SH-240SS4 Slotted Single Metal Framing Channel, 9/16 x 7/8 in Slots, 2 in Slot Spacing, 12 ga THK, 20 ft L
SKU: B-LB22SH-240SS4
Manufacturer Part Number: B22SH-240SS4
UPC: 781011213176
Documents
Short Description
Order in increments of 20
Priced per foot
Eaton's metal framing support system provides an economical solution for electrical, mechanical and industrial supports and is designed with many time-saving features. They are fully adjustable and reusable, with a complete line of channels, fittings and accessories for multi-purpose applications. Channel and fittings can be taken apart for reuse as quickly as they were assembled, producing substantial savings in time and labor, yet they provide the strength of welded construction.
Features
- Metal framing channel is cold formed on our modern rolling mills from 12 Ga. (2.6mm), 14 Ga. (1.9mm), and 16 Ga. (1.5mm) low carbon steel strips
- A continuous slot with inturned lips provides the ability to make attachments at any point
- Slotted series of channels offer full flexibility
- A variety of pre-punched slot patterns eliminate the need for precise field measuring for hole locations. Slots offer wide adjustments in the alignment and bolt sizing
- Bolted framing
Specification
| Length | 20 ft |
|---|---|
| Material | ASTM A240 304 Stainless Steel |
| Thickness | 12 ga |
| Type | Slotted Single |
| Width | 1-5/8 in |
| Standard & Approvals | RoHS Compliant |
| Depth | 1-5/8 in |
| Finish | 304 Stainless Steel |
| Slot Size | 9/16 x 7/8 in |
| Slot Spacing | 2 in |
