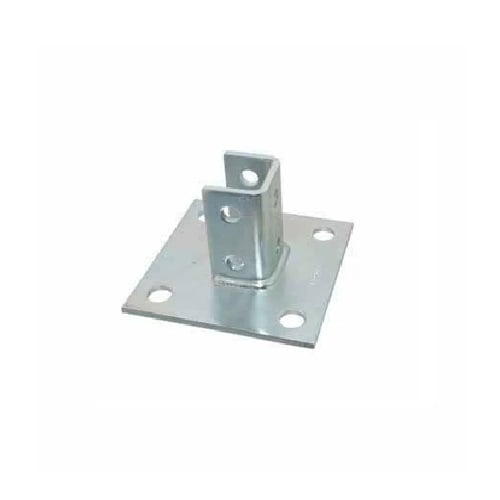

B-Line B280SQZN Type U Square Post Base, 1 Channel, Centered Channel Position, 3-1/2 in H Base, For Use With 1-5/8 x 1-5/8 in B22 Series Channel, Steel

Selected B LB280 ZN
B LB280 ZN

Documents

Short Description

B-Line strut systems, also known as bolted framing, provides an economical solution for virtually any commercial, industrial, petrochem, mining, infrastructure or data center support application. The system includes a full line of solid, slotted hole (SH) and long slotted hole (S) channel, and other hole patterns, as well as full line of fittings, clamps and beam supports. The system is available in wide variety of materials and finishes including pre-galvanized, hot dip galvanized, stainless steel, Dura Green™ paint and other paints.

Features

  • Hot rolled, pickled and oiled plated material
  • Made of Strip Steel

Specification

Material
Strip Steel
Number of Channels
1
Minimum Order Qty
1
Order Interval
1
Base Height
3-1/2 in
Catalog ID
B-LB280SQ-ZN
Channel Mounting Holes
6
Channel Position
Centered
Finish
Zinc Plated
Pad Dimensions
6 in L x 6 in W
Pad Mounting Holes
4
Suitable For Use With
1-5/8 x 1-5/8 in Channel
Type
Square
Application
For strut fittings
Standard & Approvals
RoHS Compliant
