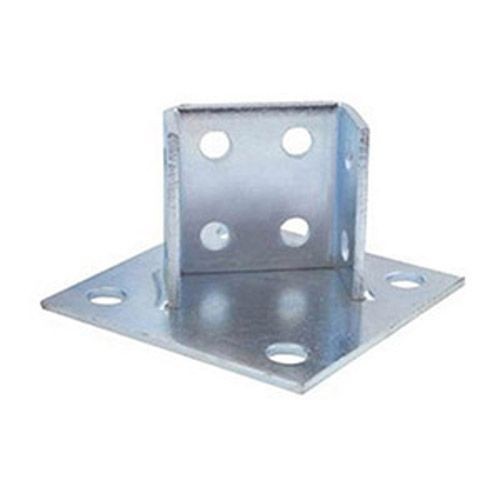

B-Line B281SQZN Type U Square Post Base, 2 Channel, Centered Channel Position, 3-1/2 in H Base, For Use With 1-5/8 x 1-5/8 in B22A, B22B and B22C Series Side by Side Channel, Steel

Selected B-Line B281SQZN Type U Square Post Base, 2 Channel, Centered Channel Position, 3-1/2 in H Base, For Use With 1-5/8 x 1-5/8 in B22A, B22B and B22C Series Side by Side Channel, Steel
B-Line B281SQZN Type U Square Post Base, 2 Channel, Centered Channel Position, 3-1/2 in H Base, For Use With 1-5/8 x 1-5/8 in B22A, B22B and B22C Series Side by Side Channel, Steel

Documents

Short Description

B-Line strut systems, also known as bolted framing, provides an economical solution for virtually any commercial, industrial, petrochem, mining, infrastructure or data center support application. The system includes a full line of solid, slotted hole (SH) and long slotted hole (S) channel, and other hole patterns, as well as full line of fittings, clamps and beam supports. The system is available in wide variety of materials and finishes including pre-galvanized, hot dip galvanized, stainless steel, Dura Green™ paint and other paints.

Features

  • Hot rolled, pickled and oiled plated material
  • Made of Strip Steel

Specification

Material
Strip Steel
Number of Channels
2
Standard & Approvals
RoHS Compliant
Finish
Zinc Plated
Suitable For Use With
1-5/8 x 1-5/8 in Side by Side Channel
Pad Mounting Holes
4
Pad Dimensions
6 in L x 6 in W
Channel Position
Centered
Channel Mounting Holes
8
Base Height
3-1/2 in
Application
For strut fittings
Type
Square
