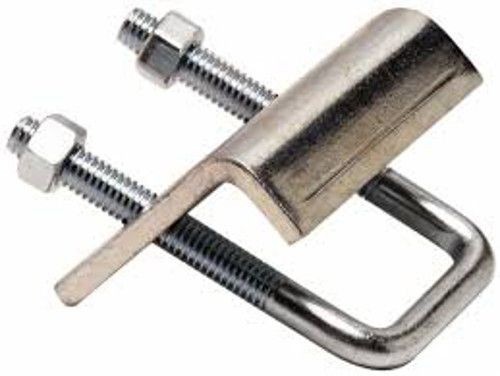

B-Line B441-22SS4 Beam Clamp, 13/16 to 1-5/8 in Channel, 3/4 in THK Flange, 1200 lb Load, 304 Stainless Steel

Selected B-Line B441-22SS4 Beam Clamp, 13/16 to 1-5/8 in Channel, 3/4 in THK Flange, 1200 lb Load, 304 Stainless Steel
B-Line B441-22SS4 Beam Clamp, 13/16 to 1-5/8 in Channel, 3/4 in THK Flange, 1200 lb Load, 304 Stainless Steel

Documents

Short Description

B-Line is a leading manufacturer and fabricator of metal products used in the support of pipe hangers and support equipment for industrial, commercial, utility and HVACR applications. B-Line pipe hangers and supports includes a wide variety of support products such as beam clamps, pipe hangers, pipe clamps, pipe rollers, pipe supports, concrete inserts and brackets.

Features

  • Safety factor of 5

Specification

Mounting Type
Channel
Standard & Approvals
RoHS Compliant
Channel Position
Right Angle Under Flange
Type
U-Bolt
Specifications
150 in-lb Torque
Load Capacity
1200 lb
Flange Thickness
3/4 in
Material
304 Stainless Steel
Suitable For Use With
13/16 to 15/8 in High Channel
Series
B441-22
Dimensions
3-3/8 in H x 3 in W x 2-3/8 in D
