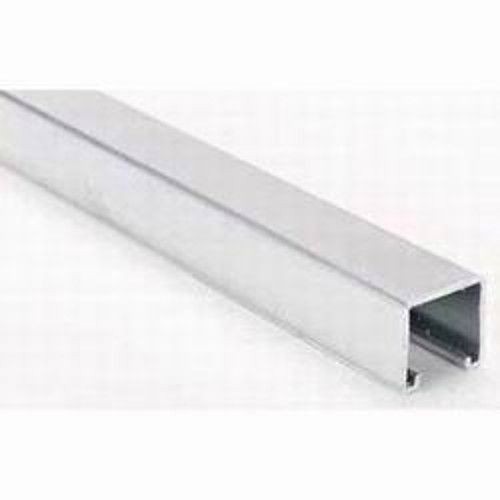

B-Line B54-120 GLV Single Solid Metal Framing Channel, 14 ga THK, 120 in L
B-Line B54-120 GLV Single Solid Metal Framing Channel, 14 ga THK, 120 in L
SKU: B-LB54GALV10
Manufacturer Part Number: B54-120 GLV
UPC: 781011255305
Documents
Short Description
Order in increments of 10
Priced per foot
Eaton's metal framing support system provides an economical solution for electrical, mechanical and industrial supports and is designed with many time-saving features. They are fully adjustable and reusable, with a complete line of channels, fittings and accessories for multi-purpose applications. Channel and fittings can be taken apart for reuse as quickly as they were assembled, producing substantial savings in time and labor, yet they provide the strength of welded construction.
Features
- Metal framing channel is cold formed on our modern rolling mills from 12 Ga. (2.6mm), 14 Ga. (1.9mm), and 16 Ga. (1.5mm) low carbon steel strips
- A continuous slot with inturned lips provides the ability to make attachments at any point
- Bolted framing
Specification
| Length | 120 in |
|---|---|
| Minimum Order Qty | 10 |
| Order Interval | 10 |
| Depth | 13/16 in |
| Finish | Pre-Galvanized |
| Type | Single |
| Width | 1-5/8 in |
| Catalog ID | B-LB54GALV10 |
| Material | ASTM A653 SS Cold Formed Low Carbon Steel |
| Standard & Approvals | RoHS Compliant, UL Listed |
| Thickness | 14 ga |
