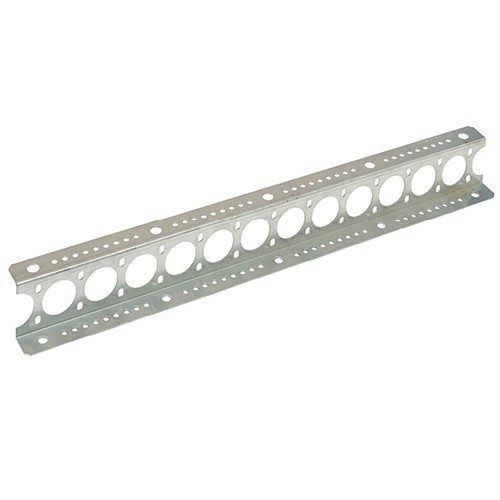

B-Line BCTS2-36 12-Holes Conduit Trapeze, 36 in L, For Use With 2 in EMT/Rigid Conduit, 316 Stainless Steel
B-Line BCTS2-36 12-Holes Conduit Trapeze, 36 in L, For Use With 2 in EMT/Rigid Conduit, 316 Stainless Steel
SKU: B-LBCTS2-36
Manufacturer Part Number: BCTS2-36
UPC: 799038767398
Features
- Unique Z design for added rigidity and strength
- Flange accommodates 1/2 in or 3/8 in ATR or bolts
- May be mounted directly to concrete decking or other structures
- Standard hole patterns make it easy to stack for multiple tiers or splice end to end
- Pipe clamps can be attached directly to either flange if needed
- Flange holes provide multiple options for hanger rods, mounting hardware and other accessories
- Safety factor of 3
- Overhang/cantilever option allows improved load ratings
- 300 lb maximum load
Specification
| Length | 36 in |
|---|---|
| Material | 316 Stainless Steel |
| Mounting Type | Flange |
| Series | BCTS2 |
| Suitable For Use With | 2 in EMT/Rigid Conduit |
| Type | 12-Holes |
| Standard & Approvals | UL/cULus Listed, NEC Approved |
| Finish | Pre-Galvanized |
