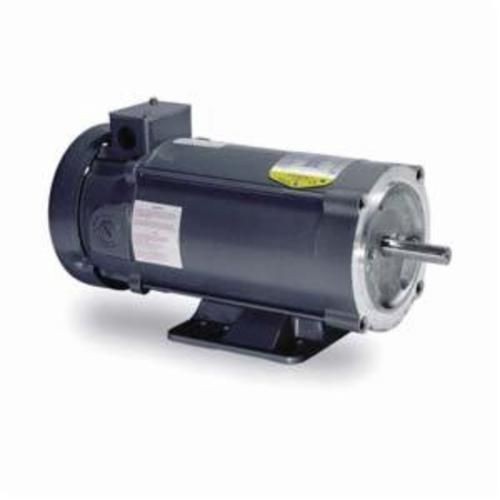

Baldor-Reliance CDP3440 DC Motor, 90 VAC, 7.6 A, 56C Frame, 0.75 hp, 1750 rpm
Baldor-Reliance CDP3440 DC Motor, 90 VAC, 7.6 A, 56C Frame, 0.75 hp, 1750 rpm
SKU: BDRCDP3440
Manufacturer Part Number: CDP3440
UPC: 781568124451
Documents
Features
- Nema C-face with removable base
- Tach adaptable
- Suitable for use where variable speed and constant torque required
- No dual mounting base holes
- Rigid base
Specification
| Frame | 56C |
|---|---|
| Insulation Class | F |
| Material | Steel |
| Mounting | F1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 7.6 A |
| Bearing Type | Double Sealed Ball |
| Catalog ID | BDRCDP3440 |
| Dimensions | 14.59 in L x 6-3/4 in W x 7-1/2 in H |
| Enclosure | TEFC |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Size | 5/8 in Dia |
| Speed | 1750 rpm |
| Temperature Rating | 40 deg C |
| Torque Rating | 3.38 ft-lb |
| Voltage Rating | 90 VAC |
| Application | Conveyors, Mixers, Packaging Machinery and Other Applications |
| Standard & Approvals | CE Certified, UL Listed, CSA Certified, RoHS Complaint |
| Horsepower | 0.75 hp |
