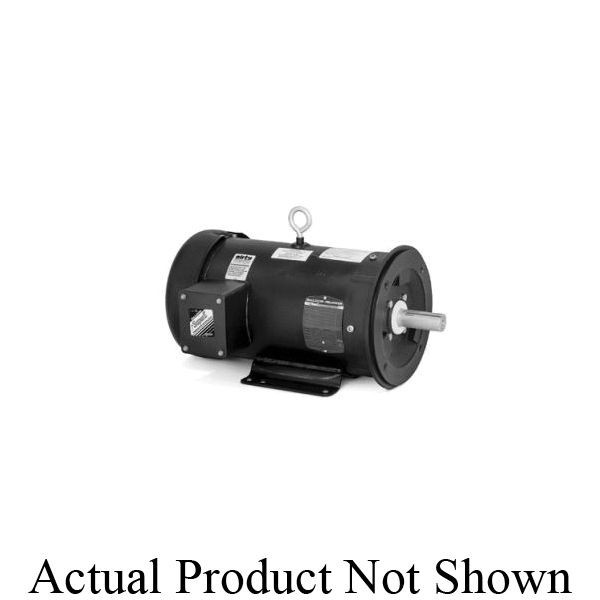

Baldor-Reliance Dirty Duty® Plus CEDM3550 Continuous-Duty AC Motor, TEFC Enclosure, 1.5 hp, 230/460 VAC, 60 Hz, 3 Phase, 56C Frame, 3500 rpm Speed, C-Face/Rigid Base Mount
Baldor-Reliance Dirty Duty® Plus CEDM3550 Continuous-Duty AC Motor, TEFC Enclosure, 1.5 hp, 230/460 VAC, 60 Hz, 3 Phase, 56C Frame, 3500 rpm Speed, C-Face/Rigid Base Mount
SKU: BDRCEDM3550
Manufacturer Part Number: CEDM3550
UPC: 781568836644
Short Description
Features
- Two part epoxy paint system passed 2000+ hr salt fog test per ASTM B 117
- Permanently lubricated, double sealed ball bearings
- IP56 protection
- Without auxiliary box, drip cover and heater
- Direct on Line (DOL) starting method
- B motor design
- Polyrex™ EM bearing grease (-20 to 300 deg F)
- 2-pole
- 4 A at 208 VAC/3.8 A at 230 VAC/1.9 A at 460 VAC
Specification
| Frame | 56C |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | F |
| Material | Steel |
| Mounting Type | C-Face/Rigid Base |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 3.8/1.9 A |
| Application Type | Compressor Motors |
| Bearing Type | Sealed Ball |
| Catalog ID | BDRCEDM3550 |
| Dimensions | 12.28 in L |
| Enclosure Type | TEFC |
| Phase | 3 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Size | 5/8 in Dia |
| Special Features | Vector (Inverter) Duty Motors |
| Speed | 3500 rpm |
| Temperature Rating | 40 deg C |
| Type | Continuous-Duty |
| Voltage Rating | 230/460 VAC |
| Application | Chemical, Oil and Gas, Forest Products, Cement and Aggregate, Marine Industry, Metals, Mining, Water and Waste Water Industries, Conveyors, Pumps, Gearboxes in Marine, Washdown or Corrosive Environments Applications |
| Standard & Approvals | cCSAus Certified, CSA EEV, IEEE 45, NEMA Premium®, RoHS Compliant, UR Listed |
| Includes | (9) 18 AWG Lead Wire, 300 Series Stainless Steel Shaft Extension, Cast Iron Endplates and Gasketed Conduit Box, Labyrinth Shaft Seals and Cover |
| Horsepower | 1.5 hp |
