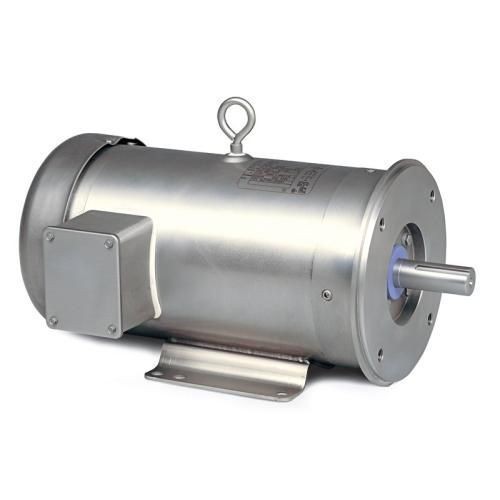

Baldor-Reliance CESSWDM3710T Continuous Duty Type 3740M AC Motor, 7.5 hp, 230/460 VAC, 60 Hz, 3 ph, 213TC, 1770 rpm, C-Face/Foot Rigid Mount, TEFC Enclosure

Selected Baldor-Reliance CESSWDM3710T Continuous Duty Type 3740M AC Motor, 7.5 hp, 230/460 VAC, 60 Hz, 3 ph, 213TC, 1770 rpm, C-Face/Foot Rigid Mount, TEFC Enclosure
Baldor-Reliance CESSWDM3710T Continuous Duty Type 3740M AC Motor, 7.5 hp, 230/460 VAC, 60 Hz, 3 ph, 213TC, 1770 rpm, C-Face/Foot Rigid Mount, TEFC Enclosure

Short Description

Baldor-Reliance washdown duty motors are designed to meet the demands of applications that require additional protection from contaminants and the ability to operate in an environments exposed to washdown methods. As the broadest washdown product family in the marketplace, Baldor offers motors from painted to stainless steel to meet the washdown needs of our customers.

Features

  • Four condensate drains in each endplate
  • Endplate rabbets sealed
  • Labyrinth seals on drive end and opposite drive end

Specification

Frame
213TC
Frequency Rating
60
Insulation Class
Class F
Material
Stainless Steel
Mounting Style
C-Face/Foot Rigid
Number of Speeds
1
Phase
3
Rotation
Reversible
Service Factor
1.15
Speed
1770
Temperature Rating
40
Torque Rating
22.36
Type
Continuous Duty Type 3740M
Voltage Rating
230/460 V
Application
Food Processing, Wet Environment, Conveyors and Packaging
Standard & Approvals
CSA Certified, RoHS Compliant, UR Listed
Amperage Rating
19/9.5 A
Dimensions
20.16 in L x 12.42 in H
Bearing Type
Sealed
Enclosure Type
TEFC
Shaft Size
1/3/2008 12:00:00 AM
Horsepower
7.5 hp
