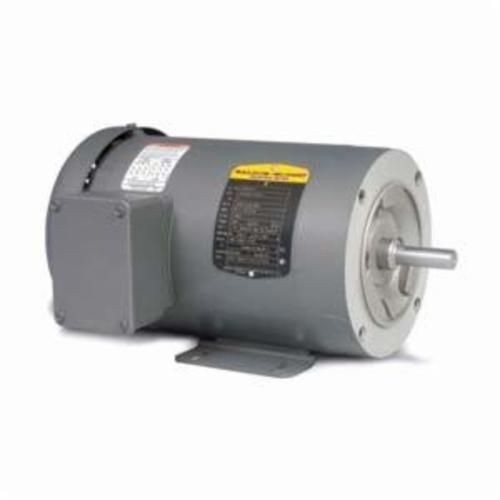

Baldor-Reliance CM3534 AC Motor, 230/460 VAC, 0.8/1.6 A, 56 Frame, 1/3 hp, 1725 rpm
Baldor-Reliance CM3534 AC Motor, 230/460 VAC, 0.8/1.6 A, 56 Frame, 1/3 hp, 1725 rpm
SKU: BDRCM3534
Manufacturer Part Number: CM3534
UPC: 781568110102
Documents
Features
- Pressure cast aluminum end plates with ribbed design for rigidity
- Locked drive end bearing
- Heavy gauge steel frame
- 57 power factor
- Rigid base
- Continuous duty
Specification
| Frame | 56 |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | F |
| Material | Steel |
| Mounting Type | F1 |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.8/1.6 A |
| Bearing Type | Ball |
| Catalog ID | BDRCM3534 |
| Dimensions | 11.35 in L x 9.28 in W x 6.34 in H |
| Enclosure Type | TEFC |
| Phase | 3 |
| Rotation | Reversible |
| Service Factor | 1.35 |
| Shaft Size | 5/8 in Dia |
| Speed | 1725 rpm |
| Temperature Rating | 40 deg C |
| Torque Rating | 4.7 ft-lb |
| Voltage Rating | 230/460 VAC |
| Application | Pumps, Fans, Conveyors, Machine Tools and Gear Reducers |
| Standard & Approvals | CSA Certified, UL Listed, RoHS Compliant, NEMA |
| Horsepower | 1/3 hp |
