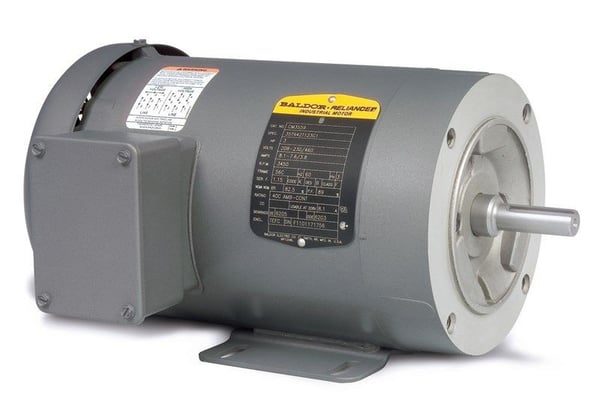

Baldor-Reliance CM3541 Type 3413M Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3/4 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 56C Frame, 3450 rpm Speed, C-Face Foot Rigid Base Mount

Selected CM3541Baldor-Reliance CM3541 Type 3413M Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3/4 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 56C Frame, 3450 rpm Speed, C-Face Foot Rigid Base Mount
CM3541Baldor-Reliance CM3541 Type 3413M Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3/4 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 56C Frame, 3450 rpm Speed, C-Face Foot Rigid Base Mount

Documents

Short Description

Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

Features

  • Locked DE bearing to allow mounting in any configuration
  • 60 Hz designs with 50 Hz information on 2, 4, 6 pole 1 to 125 hp ratings
  • Suitable for inverter use per NEMA MG1 part 31.4.4.2
  • Simple F1 to F2 conversion on cast iron frames
  • Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors

Specification

Frame
56C
Frequency Rating
60 Hz
Insulation Class
Class B
Material
Steel
Mounting Type
C-Face Foot Rigid Base
Number of Speeds
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
3.1/2.6/1.3 A
Application Type
General Purpose AC Motors, Fan & Blower Motors, Compressor Motors
Bearing Type
Ball
Catalog ID
BDRCM3541
Dimensions
11.35 in L x 9.28 in W
Enclosure Type
Totally Enclosed Fan Cooled
Phase
3
Rotation
Reversible
Service Factor
1.25
Shaft Size
5/8 in
Speed
3450 rpm
Temperature Rating
40 to 76 deg C
Torque Rating
1.2 ft-lb
Type
Type 3413M Continuous Duty
Voltage Rating
208/230/460 VAC
Application
Fans, Pumps, Blowers, Conveyors, Compressors, Industrial Machines and Other General Purpose Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, CSA Certified, UR Listed
Horsepower
3/4 hp
