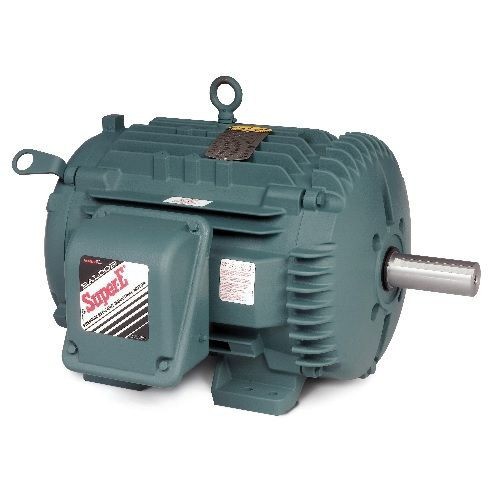

Baldor-Reliance ECTM4115T Continuous Duty Direct On Line Type 1272M AC Motor, 50 hp, 230/460 VAC, 60 Hz, 3 ph, 326T, 1775 rpm, Foot Rigid Mount, TEAO Enclosure
Baldor-Reliance ECTM4115T Continuous Duty Direct On Line Type 1272M AC Motor, 50 hp, 230/460 VAC, 60 Hz, 3 ph, 326T, 1775 rpm, Foot Rigid Mount, TEAO Enclosure
SKU: BDRECTM4115T
Manufacturer Part Number: ECTM4115T
UPC: 781568408421
Short Description
Features
- Severe duty construction for harsh environments
- Corrosion resistant epoxy finish
- Multiple lifting provisions for ease of installation
- Strategically placed drains for optimal moisture removal
- Four barrier moisture protection on drive end
- Lipped conduit lid for increased ingress protection
Specification
| Frequency Rating | 60 |
|---|---|
| Insulation Class | Class F |
| Material | Iron |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bearing Type | Ball |
| Phase | 3 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Temperature Rating | 40 |
| Voltage Rating | 230/460 V |
| Application | Pumps and Air Handling Systems |
| Standard & Approvals | CSA/CSA EEV Certified, UR Listed |
| Horsepower | 50 hp |
| Type | Continuous Duty Direct On Line Type 1272M |
| Torque Rating | 147 |
| Speed | 1775 |
| Enclosure Type | TEAO |
| Dimensions | 28.38 in L x 22.34 in W x 19.47 in H |
| Catalog ID | BDRECTM4115T |
| Amperage Rating | 116/58 A |
| Mounting Style | Foot Rigid |
| Frame | 326T |
| Shaft Size | 2/1/2008 12:00:00 AM |
