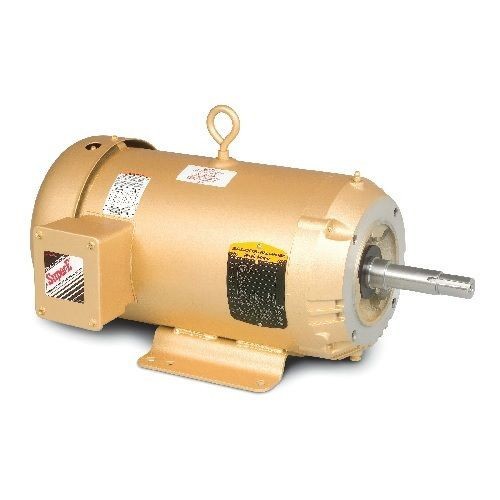

Baldor-Reliance Super-E® EJMM3558T Closed Couple Pump Continuous Duty Type 3528M AC Motor, 2 hp, 208/230/460 VAC, 60 Hz, 3 ph, 145JM, 1755 rpm, C-Face/Foot Rigid Mount, TEFC Enclosure

Selected Baldor-Reliance Super-E® EJMM3558T Closed Couple Pump Continuous Duty Type 3528M AC Motor, 2 hp, 208/230/460 VAC, 60 Hz, 3 ph, 145JM, 1755 rpm, C-Face/Foot Rigid Mount, TEFC Enclosure
Baldor-Reliance Super-E® EJMM3558T Closed Couple Pump Continuous Duty Type 3528M AC Motor, 2 hp, 208/230/460 VAC, 60 Hz, 3 ph, 145JM, 1755 rpm, C-Face/Foot Rigid Mount, TEFC Enclosure

Short Description

From industrial wastewater to fire suppression systems or commercial pools, Baldor-Reliance pump motors provide value by increasing reliability and reducing maintenance costs. Utilizing energy efficient designs, our pump motors meet NEMA Premium® efficiency and Inverter ready with wide variable torque speed ranges. Motor construction can be tailored for specific applications and industries such as food processing, washdown applications or explosion proof enclosures for pumps in hazardous areas.

Features

  • Oversize ball bearings for the pump industry
  • Locked drive end bearing to allow mounting in any configuration
  • Suitable for inverter use
  • Designed for longevity

Specification

Frame
145JM
Frequency Rating
60
Insulation Class
Class F
Material
Steel
Mounting Style
C-Face/Foot Rigid
Number of Speeds
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
6.6/5.8/2.9 A
Bearing Type
Ball
Catalog ID
BDREJMM3558T
Dimensions
15.43 in L x 10.25 in W
Enclosure Type
TEFC
Phase
3
Rotation
Reversible
Service Factor
1.15
Shaft Size
1
Speed
1755
Temperature Rating
40
Torque Rating
5.99
Type
Closed Couple Pump Continuous Duty Type 3528M
Voltage Rating
208/230/460 VAC
Application
Industrial, Commercial Pumps, Food and Beverage, Agricultural and Aggregate
Standard & Approvals
CSA/CSA EEV Certified, UR Listed
Horsepower
2 hp
