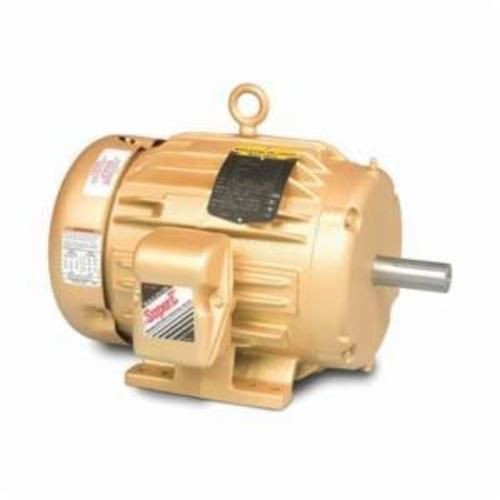

Baldor-Reliance Super-E® EM2334T AC Motor, 230/460 VAC, 24/48 A, 256 Frame, 20 hp, 1765 rpm
Baldor-Reliance Super-E® EM2334T AC Motor, 230/460 VAC, 24/48 A, 256 Frame, 20 hp, 1765 rpm
SKU: BDREM2334T
Manufacturer Part Number: EM2334T
UPC: 781568103098
Documents
Features
- Suitable for mounting any position
- 84 power factor
- Rigid base
Specification
| Frame | 256 |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | F |
| Material | Iron |
| Mounting Type | F1 |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 24/48 A |
| Bearing Type | Ball |
| Catalog ID | BDREM2334T |
| Dimensions | 23.28 in L x 16.67 in W x 15.6 in H |
| Enclosure Type | TEFC |
| Phase | 3 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Size | 1-5/8 in Dia |
| Speed | 1765 rpm |
| Temperature Rating | 40 deg C |
| Torque Rating | 213 ft-lb |
| Voltage Rating | 230/460 VAC |
| Application | Pumps, Compressors, Fans, Conveyors, Machine Tools and Other Applications |
| Standard & Approvals | CSA Certified, UR Standard |
| Horsepower | 20 hp |
