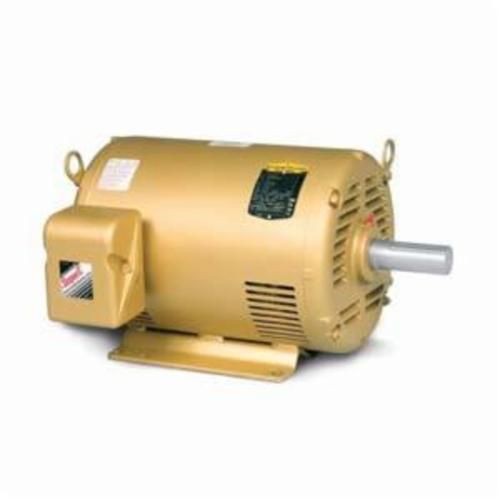

Baldor-Reliance Super-E® EM3218T AC Motor, 208/230/460 VAC, 6.6/13.2/14 A, 184 Frame, 5 hp, 1750 rpm
Baldor-Reliance Super-E® EM3218T AC Motor, 208/230/460 VAC, 6.6/13.2/14 A, 184 Frame, 5 hp, 1750 rpm
SKU: BDREM3218T
Manufacturer Part Number: EM3218T
UPC: 781568104569
Documents
Features
- Cast iron frames available
- Copper windings
- 8 power factor
- Rigid base
Specification
| Frame | 184 |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | F |
| Material | Steel |
| Mounting Type | F1 |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 6.6/13.2/14 A |
| Bearing Type | Ball |
| Catalog ID | BDREM3218T |
| Dimensions | 16-1/2 in L x 11.78 in W x 8.44 in H |
| Enclosure Type | OPSB |
| Phase | 3 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Size | 1-1/8 in Dia |
| Speed | 1750 rpm |
| Temperature Rating | 40 deg C |
| Torque Rating | 44.8 ft-lb |
| Voltage Rating | 208/230/460 VAC |
| Application | Pumps, Compressors, Machine Tools, Conveyors, Blowers, Fans and Many Other Applications |
| Standard & Approvals | CSA Certified, UR Standard |
| Horsepower | 5 hp |
