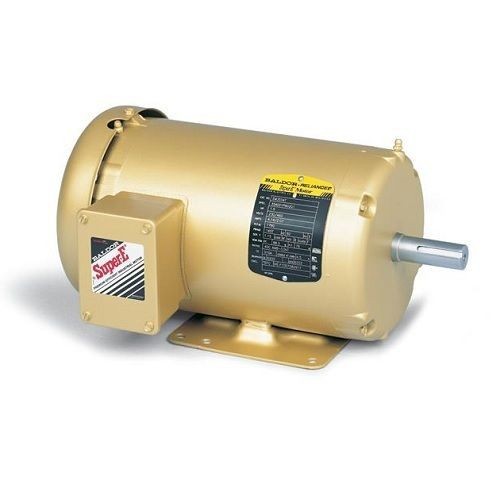

Baldor-Reliance Super-E® EM3615T-G AC Motor, 208/230/460 VAC, 6.7/13.4/13.9 A, 184 Frame, 5 hp, 1750 rpm
Baldor-Reliance Super-E® EM3615T-G AC Motor, 208/230/460 VAC, 6.7/13.4/13.9 A, 184 Frame, 5 hp, 1750 rpm
SKU: BDREM3615T-G
Manufacturer Part Number: EM3615T-G
UPC: 781568547755
Features
- Class H insulated with AEGIS shaft grounding ring installed internally
- Regreasable ball bearings
- Dynamically balanced rotors for reduced vibration and quiet operation
- Suitable for mounting in any position
- Inverter ready
- 78 power factor
- Rigid base
Specification
| Frame | 184 |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | H |
| Material | Steel |
| Mounting Type | F1 |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 6.7/13.4/13.9 A |
| Bearing Type | Ball |
| Catalog ID | BDREM3615T-G |
| Dimensions | 18.04 in L x 12.03 in W x 10.87 in H |
| Enclosure Type | TEFC |
| Phase | 3 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Size | 1-1/8 in Dia |
| Speed | 1750 rpm |
| Temperature Rating | 40 deg C |
| Torque Rating | 52.2 ft-lb |
| Voltage Rating | 208/230/460 VAC |
| Application | For heating, ventilation and air conditioning blower and fan motors, pump motors, and other general purpose applications using an adjustable speed drive |
| Standard & Approvals | CSA Certified, UR Standard, NEMA |
| Horsepower | 5 hp |
