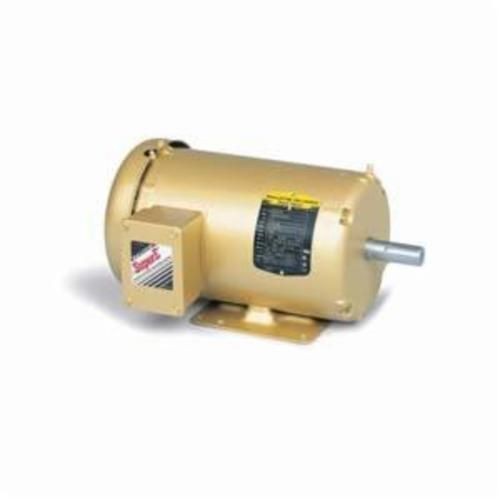

Baldor-Reliance Super-E® EM3711T AC Motor, 208/230/460 VAC, 11.8/23.6/24.9 A, 215 Frame, 10 hp, 3490 rpm
Baldor-Reliance Super-E® EM3711T AC Motor, 208/230/460 VAC, 11.8/23.6/24.9 A, 215 Frame, 10 hp, 3490 rpm
SKU: BDREM3711T
Manufacturer Part Number: EM3711T
UPC: 781568139066
Features
- Suitable for mounting any position
- 87 power factor
- Rigid base
Specification
| Frame | 215 |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | F |
| Material | Steel |
| Mounting Type | F1 |
| Number of Speeds | 1 |
| Phase | 3 |
| Rotation | Reversible |
| Temperature Rating | 40 deg C |
| Voltage Rating | 208/230/460 VAC |
| Application | Pumps, Compressors, Fans, Conveyors, Machine Tools and Other Applications |
| Standard & Approvals | CSA Certified, UR Standard |
| Amperage Rating | 11.8/23.6/24.9 A |
| Bearing Type | Ball |
| Enclosure Type | TEFC |
| Horsepower | 10 hp |
| Dimensions | 17.89 in L x 12.42 in H |
| Torque Rating | 47.2 ft-lb |
| Speed | 3490 rpm |
| Shaft Size | 1-3/8 in Dia |
| Service Factor | 1.15 |
