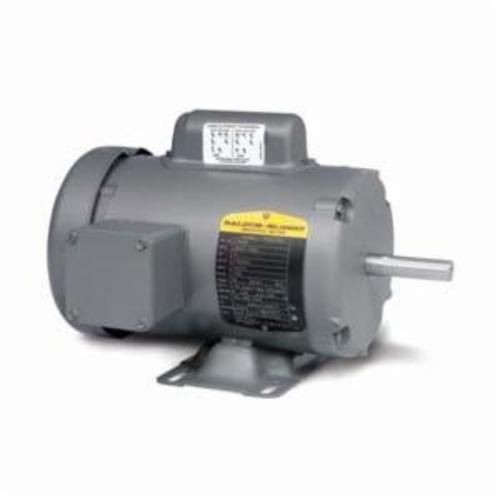

Baldor-Reliance L3502 AC Motor, 115/230 VAC, 3.7/7.4 A, 56 Frame, 1/3 hp, 1140 rpm
Baldor-Reliance L3502 AC Motor, 115/230 VAC, 3.7/7.4 A, 56 Frame, 1/3 hp, 1140 rpm
SKU: BDRL3502
Manufacturer Part Number: L3502
UPC: 781568100202
Documents
Features
- Snap action starting switch
- Gasketed conduit box and capacitor cover
- Base seam is welded to the frame
- 55 power factor
- Rigid base
- Continuous duty
Specification
| Frame | 56 |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | F |
| Material | Steel |
| Mounting Type | F1 |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 3.7/7.4 A |
| Bearing Type | Ball |
| Catalog ID | BDRL3502 |
| Dimensions | 11.97 in L x 8.97 in W x 7.9 in H |
| Enclosure Type | TEFC |
| Phase | 1 |
| Rotation | Reversible |
| Service Factor | 1.35 |
| Shaft Size | 5/8 in Dia |
| Speed | 1140 rpm |
| Temperature Rating | 40 deg C |
| Torque Rating | 3.6 ft-lb |
| Voltage Rating | 115/230 VAC |
| Application | Compressors, Pumps, Fans, Farm Equipment, Conveyors, Material Handling Equipment and Machine Tools |
| Standard & Approvals | CSA Certified, UL Listed, RoHS Compliant, NEMA |
| Horsepower | 1/3 hp |
